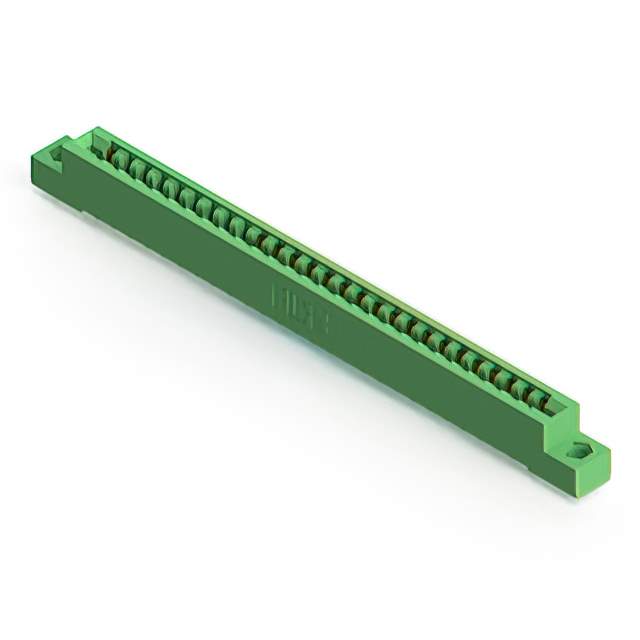

307-027-505-104 Real Image
Same model may have multiple batches, images only for reference.

307-027-505-104

Part No 307-027-505-104
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 307 SERIES (.156" (3.96MM) CONTA / 27 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
Datasheet
307-027-505-104 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 307
Package Box
Card Type Non Specified - Single Edge
Gender Female
Number of Positions/Bay/Row 27
Number of Positions 27
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 1
Pitch 0.156" (3.96mm)
Read Out Single
Mounting Type Through Hole
Termination Solder Eyelet(s)
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Semi Bellows
Color Green
Flange Feature Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 307-027
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-307-027-505-104
Standard Package 25
Win Source Part Number 993431-307-027-505-104
Ultra Librarian 3D Model Ultra Librarian 307-027-505-104 CAD Model

Description

The 307 series card edge connector is a female connector with 27 positions and a pitch of 0.156" (3.96mm) from EDAC Inc.

  • Positions: 27
  • Pitch: 0.156" (3.96mm)
  • Contact Type: Semi Bellows
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Card Type: Non-Specified Single Edge
  • Card Thickness: 0.054" to 0.070" (1.37mm to 1.78mm)
  • Flange Feature: Flush Mount, Top Opening, Unthreaded
  • Flange Diameter: 0.156" (3.96mm)
  • Temperature Range: -40°C to 105°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
