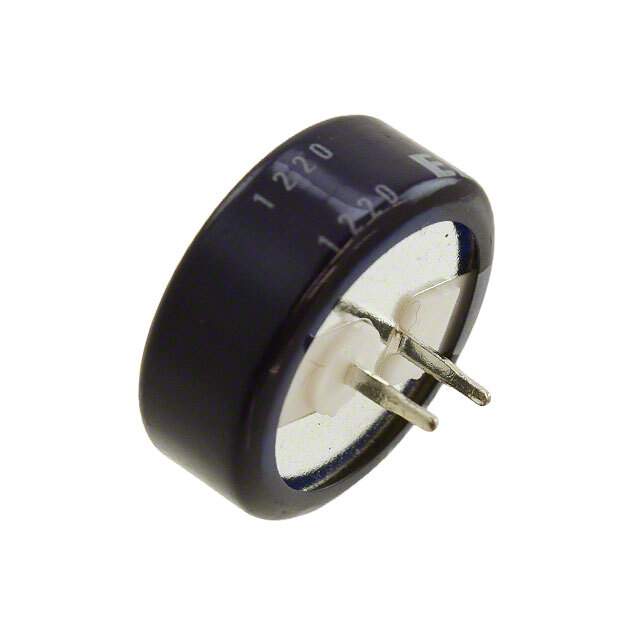

RSCB11555R5L08015T Real Image
Same model may have multiple batches, images only for reference.

RSCB11555R5L08015T

Part No RSCB11555R5L08015T
Manufacturer Elna America
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 1.5F -20% +80% 5.5V T/H / 1.5 F (EDLC) Supercapacitor 5.5 V Radial, Can 30Ohm @ 1kHz 1000 Hrs @ 70°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Elna America
Series DB
Package Bulk
Capacitance 1.5 F
Tolerance -20%, +80%
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 30Ohm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.846" Dia (21.50mm)
Height - Seated (Max) 0.315" (8.00mm)
Temperature Range - Operating -25°C ~ 70°C
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1337800-RSCB11555R5L08015T
Ultra Librarian 3D Model Ultra Librarian RSCB11555R5L08015T CAD Model

Description

The Elna America 1337800-RSCB11555R5L08015T is an Electric Double Layer Capacitor (EDLC), Supercapacitor that belongs to the DB series.

  • Series: DB
  • Capacitance: 1.5 F
  • Voltage Rating: 5.5 V
  • Tolerance: -20% to +80%
  • ESR (Equivalent Series Resistance): 30Ohm @ 1kHz
  • Package / Case: Radial, Can
  • Height - Seated (Max): 0.315" (8.00mm)
  • Diameter: 0.846" (21.50mm)
  • Mounting Type: Through Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Lifetime @ Temp.: 1000 hours @ 70°C
