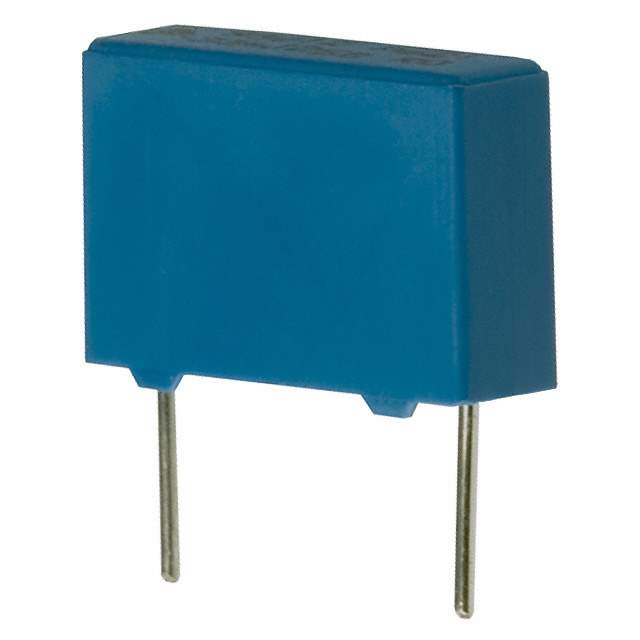

Same model may have multiple batches, images only for reference.

B32021A3102M289

Name: B32021A3102M289
Brand: EPCOS (TDK)
SKU: 1159511
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B32021A3102M289
Manufacturer	EPCOS (TDK)
Catalog	Film Capacitors
Description	CAP FILM 1000PF 20% 1.5KVDC RAD / 1000 pF Film Capacitor 300V 1500V (1.5kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Film Capacitors
Mfr	EPCOS - TDK Electronics
Series	B3202* - Y2 Standard
Package	Cut Tape (CT),Tape & Box (TB)
Capacitance	1000 pF
Tolerance	±20%
Voltage Rating - AC	300V
Voltage Rating - DC	1500V (1.5kV)
Dielectric Material	Polypropylene (PP), Metallized
Temperature Range - Operating	-40°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Dimension	0.512" L x 0.157" W (13.00mm x 4.00mm)
Height - Seated (Max)	0.354" (9.00mm)
Termination	PC Pins
Lead Spacing	0.394" (10.00mm)
Applications	EMI, RFI Suppression
Ratings	Y2
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.25.0020
Other Names	495-5033-3,495-5033-1,B32021A3102M289-ND
Standard Package	1,000
Win Source Part Number	1159511-B32021A3102M289
Ultra Librarian 3D Model	Ultra Librarian B32021A3102M289 CAD Model

Alternative Products

Description

The EPCOS (TDK) 1025492 is a radial film capacitor manufactured by EPCOS (TDK).

Capacitance: 1000 pF
Tolerance: ±20%
Voltage Rating: 300V AC, 1500V DC
Application: EMI/RFI Suppression
Maximum Seated Height: 0.354" (9.00mm)
Lead Spacing: 0.394" (10.00mm)
Dimensions: 0.512" L x 0.157" W (13.00mm x 4.00mm)
Packaging: Cut Tape (CT), Tape & Box (TB)
Status: Active
Popularity: Medium
