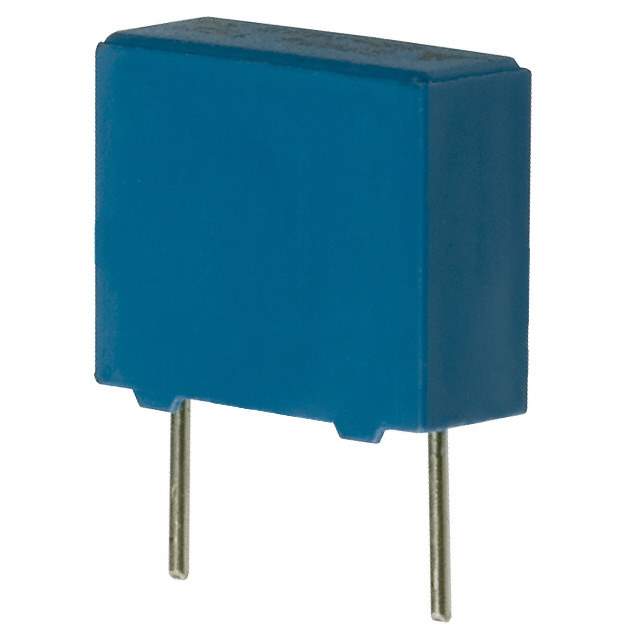

B32621A0682J000 Real Image
Same model may have multiple batches, images only for reference.

B32621A0682J000

Part No B32621A0682J000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 6800PF 5% 1KVDC RADIAL / 6800 pF Film Capacitor 500V 1000V (1kV) Polypropylene (PP), Metallized - Stacked Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3262* - MKP High Pulse (stacked)
Package Bulk
Capacitance 6800 pF
Tolerance ±5%
Voltage Rating - AC 500V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized - Stacked
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.512" L x 0.197" W (13.00mm x 5.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications High Pulse, DV/DT
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0040
Other Names B32621A682J,495-1348,11009922,B32621A 682J
Standard Package 1,000
Win Source Part Number 1210300-B32621A0682J000
Ultra Librarian 3D Model Ultra Librarian B32621A0682J000 CAD Model

Description

The B3262* series high pulse film capacitors are designed for applications that require high pulse power and high voltage ratings.

  • Capacitance: 6800 pF
  • Voltage Rating: 500V AC / 1000V DC
  • Tolerance: ±5%
  • Dielectric Material: Polypropylene (PP) and metallized-stacked
  • Package: Radial with PC pins
  • Mounting Type: Through-hole
  • Temperature Range: -55°C to 105°C
