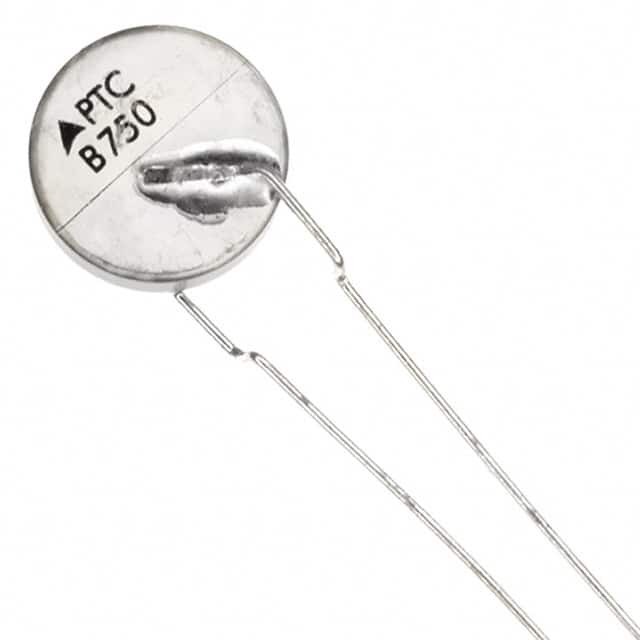

Same model may have multiple batches, images only for reference.
B59750B0120A070
Same model may have multiple batches, images only for reference.

B59750B0120A070

Part No B59750B0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 420V RADIAL DISC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 15 Weeks
Features Ceramic PTC Resettable Fuse 420V Ih Through Hole Radial, Disc
Manufacturer EPCOS (TDK)
Package Bulk
Operating Temperature Range 0°C ~ 60°C
Mounting Through Hole
Package Radial, Disc
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Part Number B59750B120A70-ND, B59750B120A70, Q9379028A, 495-3879, B59750B0120A070-ND, B59750B 120A 70
Quantity per package 500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 863133-B59750B0120A070
Ultra Librarian 3D Model Ultra Librarian B59750B0120A070 CAD Model

Description

The EPCOS B59750B0120A070 is a ceramic PTC resettable fuse.

  • Voltage Rating: 420V Ih
  • Operating Temperature Range: 0°C ~ 60°C
  • Package/Case: Radial, Disc
  • Mounting Type: Through Hole
  • Quantity per Package: 500
  • Estimated Production Lead Time: 15 weeks
