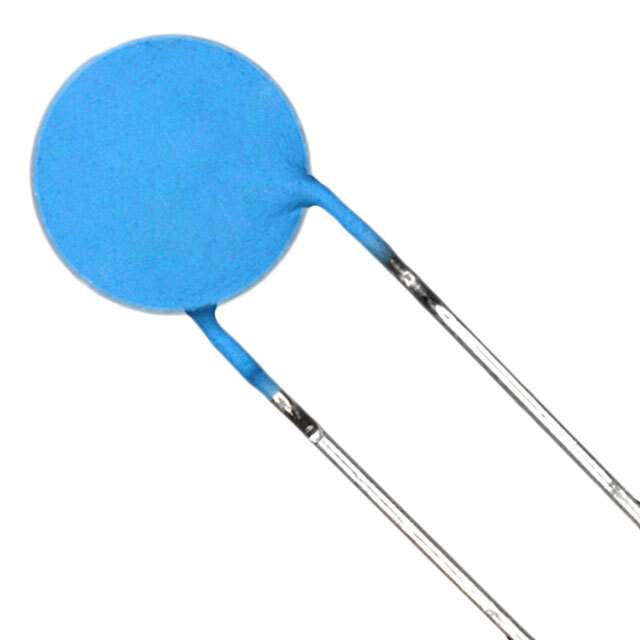

B59970C0120A070

Part No B59970C0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 150MA 63V RAD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Type Ceramic
Voltage - Max 80V
Current - Max 3A
Current - Hold (Ih) (Max) 150mA
Current - Trip (It) 300mA
Resistance - 25°C (Typ) 9.4 Ohm
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Dimension 0.354" Dia x 0.138" W (9.00mm x 3.50mm)
Height - Seated (Max) 0.492" (12.50mm)
Lead Spacing 0.197" (5.00mm)
Approvals UR
Win Source Part Number 199986-B59970C0120A070
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B59970C0120A070 CAD Model

Description

Product Overview of B59970C0120A070

The B59970C0120A070 is a high-performance electronic component designed to meet the needs of modern applications requiring precision and reliability. With its advanced design, this component offers exceptional efficiency in both commercial and industrial settings.

Applications and Projects

  • Temperature Sensing Systems
  • Industrial Automation
  • HVAC Control Panels
  • Consumer Electronics
  • Automotive Electronics

Features and Benefits

  • High Precision Measurement: Ensures accurate data collection and processing.
  • Compact Design: Fits well in constrained spaces and integrates easily into existing setups.
  • Durable Construction: Withstands harsh environmental conditions, ensuring longevity.
  • Energy Efficiency: Offers low power consumption to enhance overall system performance.

This versatile component is ideal for engineers and developers looking to optimize their systems, providing both superior performance and cost-efficiency.
