Same model may have multiple batches, images only for reference.

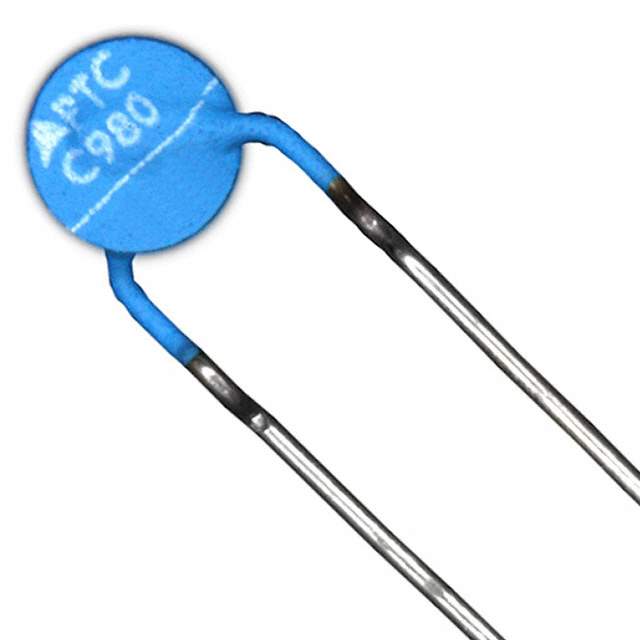

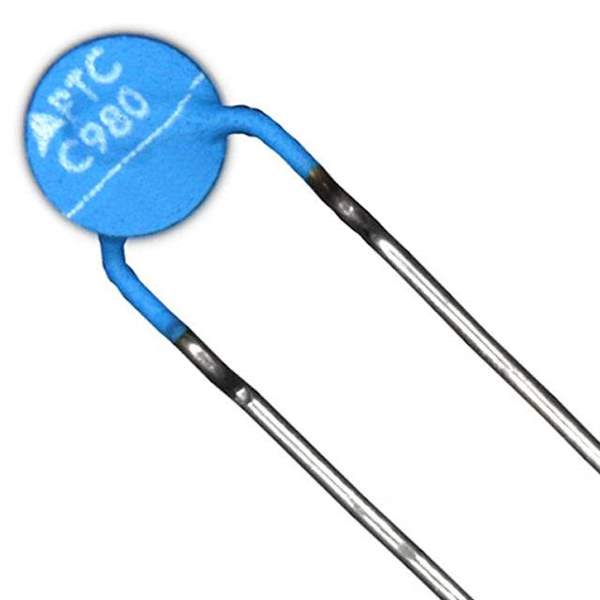

B59980C120A70 Real Image
Same model may have multiple batches, images only for reference.

B59980C120A70

Part No B59980C120A70
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 85MA 63V RAD
Datasheet
B59980C120A70 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Type Ceramic
Voltage - Max 80V
Current - Max 1A
Current - Hold (Ih) (Max) 85mA
Current - Trip (It) 170mA
Resistance - 25°C (Typ) 25 Ohm
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Dimension 0.256" Dia x 0.138" W (6.50mm x 3.50mm)
Height - Seated (Max) 0.394" (10.00mm)
Lead Spacing 0.197" (5.00mm)
Approvals UR
Win Source Part Number 199992-B59980C120A70
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B59980C120A70 CAD Model

Description

Applications and Projects

  • Power supply units
  • Computing hardware cooling solutions
  • Server room environment management

Features and Benefits

  • High thermal regulation
  • Resistant to electrical interference
  • Compact, easily mountable

The B59980C120A70 is tailored for environments where thermal management is critical. Its compact design and resistance to interference make it a reliable component for modern computing needs.
