B65691K0100A048 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B65691K0100A048

Part No B65691K0100A048
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores

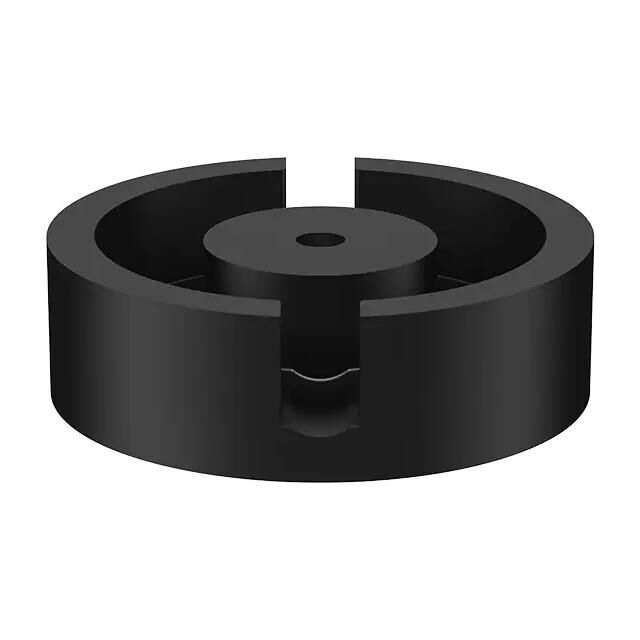

Description Uncoated N48 Ferrite Core P (Pot Core) Type Length Width 2.335" (59.30mm) Diameter 1.402" (35.60mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series P59/36
Packaging Box
Core Type P (Pot Core)
Material N48
Diameter 2.335" (59.30mm)
Tolerance ±3%
Gap Gapped
Effective Permeability (µe) 14.0
Core Factor (ΣI/A) mm⁻¹ 0.181
Effective Length (le) mm 88.0
Effective Area (Ae) mm2 485.0
Minimum Core Cross Section (Amin) mm2 445.0
Effective Magnetic Volume (Ve) mm3 42680.0
Finish Uncoated
Height 1.402" (35.60mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489780-B65691K0100A048
Ultra Librarian 3D Model Ultra Librarian B65691K0100A048 CAD Model
