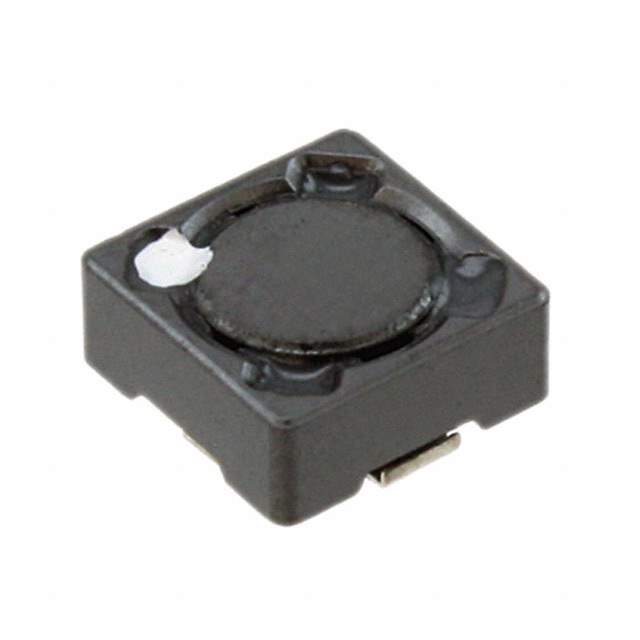

B82472G4682M

Part No B82472G4682M
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 6.8UH 2.05A 55 MOHM
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 6.8μH
Tolerance ±20%
Current Rating 2.05A
Current - Saturation 1.4A
DC Resistance (DCR) 55 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.138" (3.50mm)
Win Source Part Number 049005-B82472G4682M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B82472G4682M CAD Model

Description

Description

The B82472G4682M offers excellent electrical performance with minimal losses, perfect for circuits requiring high precision and efficiency. Its enhanced longevity and durability set it apart in competitive markets.

Features and Benefits

  • High Precision: Ensures consistent electrical characteristics, aiding precise circuit designs.
  • Low Losses: Reduces energy dissipation, improving overall system efficiency.
  • Extended Longevity: Built to last, providing reliable performance over extended periods.

Applications/Projects

  • Precision measurement equipment
  • Medical devices
  • Microcontroller projects
  • Aerospace systems

Additional Details

The B82472G4682M is particularly suited for critical applications where precise inductance is crucial. Its high-quality materials and construction make it an indispensable component in advanced electronic projects.
