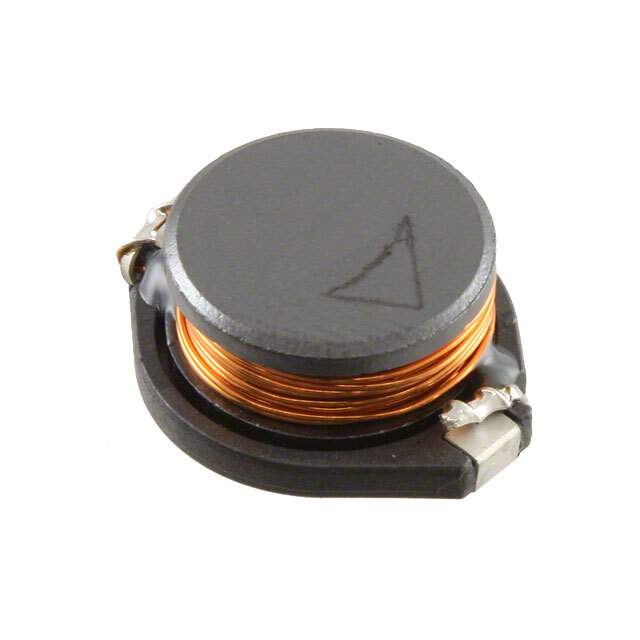

Same model may have multiple batches, images only for reference.

B82479A1224M000

Name: B82479A1224M000
Brand: EPCOS (TDK)
SKU: 1139741
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B82479A1224M000
Manufacturer	EPCOS (TDK)
Catalog	Fixed Inductors
Description	FIXED IND 220UH 1.2A 380MOHM SMD / 220 µH Unshielded Drum Core, Wirewound Inductor 1.2 A 380mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	EPCOS - TDK Electronics
Series	B82479A1
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	220 µH
Tolerance	±20%
Current Rating (Amps)	1.2 A
Current - Saturation (Isat)	2.4A
Shielding	Unshielded
DC Resistance (DCR)	380mOhm Max
Temperature Range - Operating	-55°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.730" L x 0.600" W (18.54mm x 15.24mm)
Height - Seated (Max)	0.280" (7.11mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	495-5704-6,B82479A1224M-ND,495-5704-2,B82479A1224M,495-5704-1
Standard Package	250
Win Source Part Number	1139741-B82479A1224M000
Ultra Librarian 3D Model	Ultra Librarian B82479A1224M000 CAD Model

Alternative Products

Description

The B82479A1224M000 fixed inductor from EPCOS - TDK Electronics is a drum core, wirewound type inductor.

Inductance: 220µH
Tolerance: ±20%
Shielding: Unshielded
Package: Tape & Reel
Standard Package: 250
Mounting Type: SMD (SMT)
Core Material: Ferrite
DC Resistance (DCR): 380mOhm max
Temperature Range: -55°C ~ 150°C
Dimensions: 0.730” L x 0.600” W (18.54mm x 15.24mm)
Current Rating (amps): 1.2A
Inductance Frequency - Test: 100kHz
REACH: Unaffected
HTSUS: 8504.50.4000
