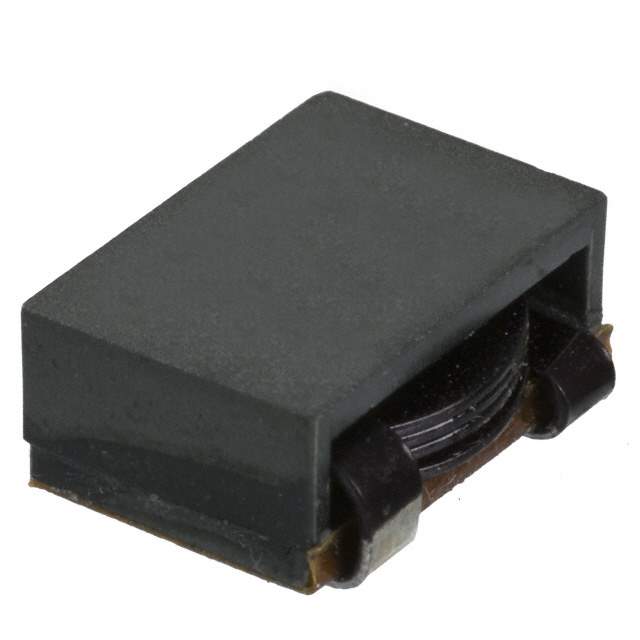

B82559A142A13 Real Image
Same model may have multiple batches, images only for reference.

B82559A142A13

Part No B82559A142A13
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description Ind Power Shielded Wirewound 1.4uH 10% 10KHz Ferrite 22A Blister T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Nonstandard
Composition Wirewound
Core Material Ferrite
Current Rating 22 A
DC Resistance (DCR) 1.5 mΩ
Depth 11 mm
Height 5.95 mm
Height - Seated (Max) 5.9944 mm
Inductance 1.4 µH
Lead Free Yes
Length 13.0048 mm
Max DC Current 22 A
Maximum Operating Temperature 130 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Packaging Cut Tape (CT)
Radiation Hardening No
RoHS Compliant
Saturation Current 22 A
Schedule B 8504500000, 8504500000
Shielding Shielded
Termination SMD/SMT
Test Frequency 10 kHz
Tolerance 10 %
Weight 2.599991 g
Width 11 mm
Win Source Part Number 1011829-B82559A142A13
Categories Fixed Inductors
Manufacturer EPCOS (TDK)
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B82559A142A13 CAD Model

Description

The Fixed Inductor from EPCOS (TDK) is a high-quality inductor that is perfect for use in various electronic devices.

  • Current Rating: 22 A
  • Inductance: 1.4 μH
  • DC Resistance: 1.5 mΩ
  • Saturation Current: 22 A
  • Tolerance: 10%
  • Test Frequency: 10 kHz
  • Mounting: Surface mountable
  • Length: 13.0048 mm
  • Width: 11 mm
  • Height: 5.95 mm
  • RoHS: Compliant
  • Lead-Free: Yes
