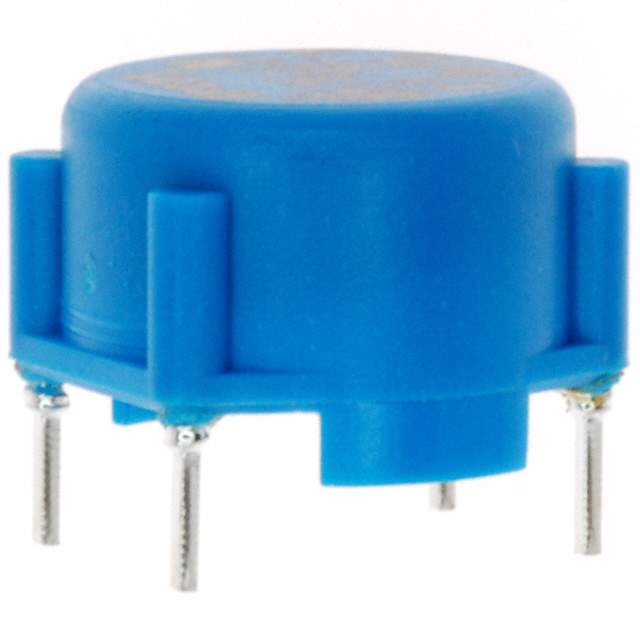

B82721A2122N 20 Real Image
Same model may have multiple batches, images only for reference.

B82721A2122N 20

Part No B82721A2122N 20
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 6.8MH 1.2A 2LN TH
Datasheet
B82721A2122N 20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Tray
Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 6.8mH @ 10kHz
Current Rating (Max) 1.2A
DC Resistance (DCR) (Max) 280 mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C to 125°C
Approvals ENEC, UR, VDE
Mounting Through Hole
Height (Max) 0.496" (12.60mm)
Dimension Horizontal, 4 PC Pin
Win Source Part Number 049014-B82721A2122N 20
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82721A2122N 20 CAD Model

Description

Product Description

The B82721A2122N 20 offers an advanced design focused on inductive coupling efficiency and electromagnetic compatibility. Its construction is ideal for delivering resilient performance in rapidly changing electrical conditions.

Features and Benefits

  • Superior capability for noise suppression in sensitive circuits.
  • Streamlined for space-saving circuit design.
  • Outstanding frequency response, enhancing circuit efficiency.
  • Robust against electrical and thermal fluctuations, ensuring reliability.

Applications

  • Data acquisition systems
  • Sensor networks
  • Industrial control panels
  • Automated machinery

The B82721A2122N 20 stands out as a reliable component for engineers seeking robust circuit responses.
