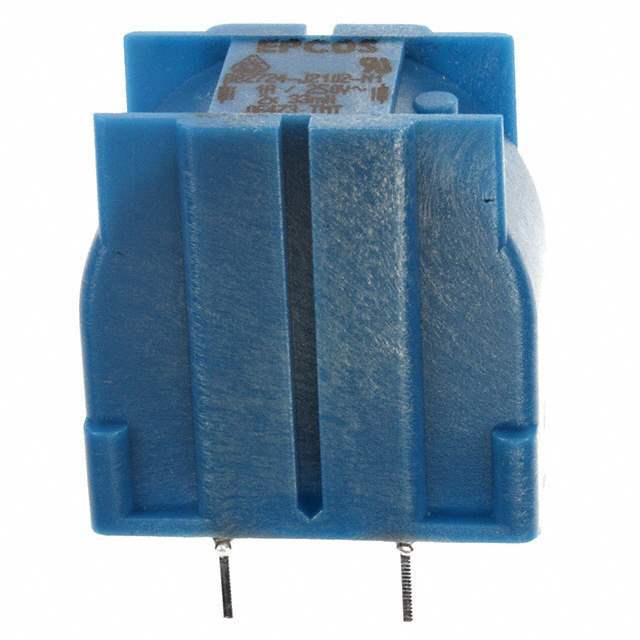

B82724J2102N001 EPCOS - TDK Electronics
Same model may have multiple batches, images only for reference.

B82724J2102N001

Part No B82724J2102N001
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 33MH 1A 2LN TH
Datasheet
B82724J2102N001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters> Common Mode Chokes
Manufacturer EPCOS - TDK Electronics
Packaging Tray
Part Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 33 mH @ 10 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 750mOhm (Typ)
Voltage Rating - AC 250V
Ultra Librarian 3D Model Ultra Librarian B82724J2102N001 CAD Model

Description

  • High resonance frequency due to special winding technique
  • Approx. 1% stray inductance for symmetrical interference suppression
  • Suitable for wave soldering
  • Design complies with EN 60938-2 (VDE 0565-2) and UL 1283
  • UL2) and/or ENEC (VDE) approvals
  • RoHS-compatible
