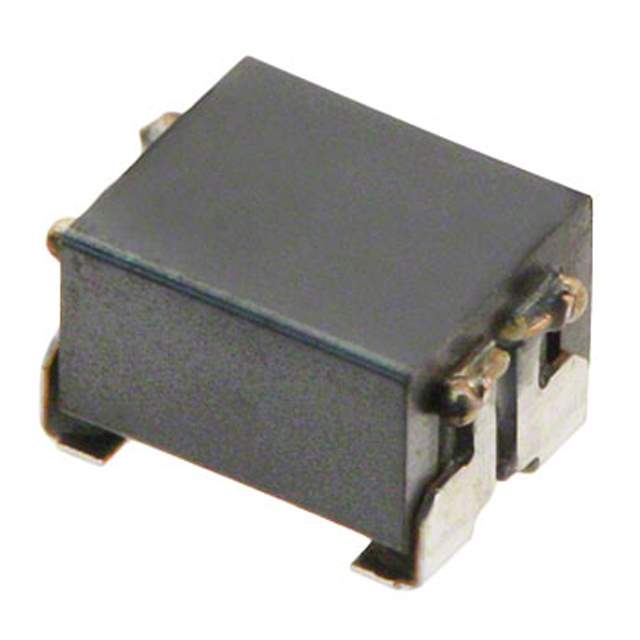

B82789C223N1

Name: B82789C223N1
Brand: EPCOS (TDK)
SKU: 436450
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	B82789C223N1
Manufacturer	EPCOS (TDK)
Catalog	Common Mode Chokes
Description	CMC 22UH 250MA 2LN SMD AEC-Q200
Datasheet	B82789C223N1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	EPCOS (TDK)
Packaging	Reel - TR
Status	Active
Filter Type	Signal Line
Number of Lines	2
Inductance @ Frequency	22μH @ 100kHz
Current Rating (Max)	250mA
DC Resistance (DCR) (Max)	580 mOhm
Voltage Rating - DC	80V
Voltage Rating - AC	42V
Temperature Range - Operating	-55°C to 125°C
Ratings	AEC-Q200
Mounting	SMD (SMT)
Height (Max)	0.118" (3.00mm)
Dimension	Horizontal, 4 L-Lead
Win Source Part Number	1021780-B82789C223N1
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian B82789C223N1 CAD Model

Alternative Products

Description

The EPCOS (TDK) filter is a signal line filter with a voltage rating - AC of 42V and a voltage rating - DC of 80V. With a current rating (Max) of 250mA, it is mounted via SMD (SMT) and has a DC resistance (DCR) (Max) of 580 mOhm.

Voltage Rating - AC: 42V
Voltage Rating - DC: 80V
Current Rating (Max): 250mA
Mounting: SMD (SMT)
DC Resistance (DCR) (Max): 580 mOhm
Height (Max): 0.118" (3.00mm)
Operating Temperature Range: -55°C to 125°C
Dimension: Horizontal, 4 L-Lead
