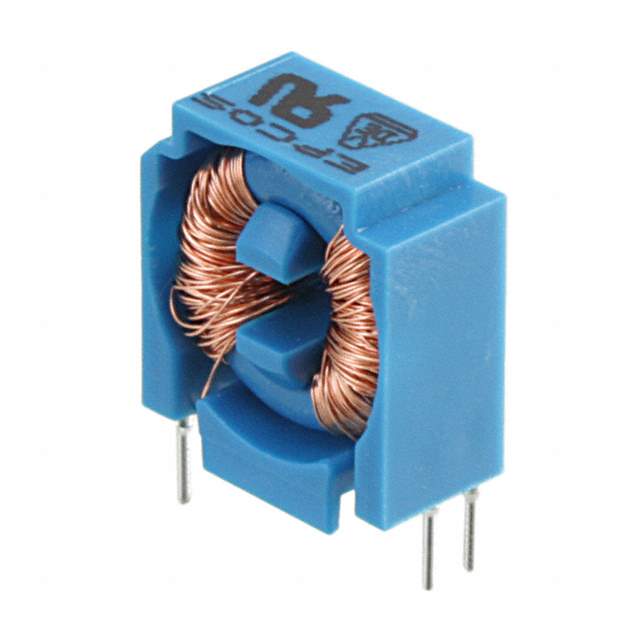

B82791H2501N001 Real Image
Same model may have multiple batches, images only for reference.

B82791H2501N001

Part No B82791H2501N001
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 10MH 500MA 2LN TH  /  10 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1Ohm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr EPCOS - TDK Electronics
Series B82791
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 10 mH @ 10 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 1Ohm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Dimension 0.602" L x 0.291" W (15.30mm x 7.40mm)
Height (Max) 0.693" (17.60mm)
Package / Case Vertical, 4 PC Pin
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 495-5765-6INACTIVE,495-5765-ND,495-B82791H2501N001,495-5765-6,495-5765-6INACTIVATEDINACTIVE,B82791H2501N 1,495-5765-1-ND,495-5765-2-ND,495-5765-2,495-5765-1,495-5765-6-ND,B82791H2501N1-ND,495-5765,495-5765-2INACTIVATED,495-5765-6INACTIVATEDINACTIVE-ND,B82791H2501N1,495-5765-6INACTIVATED,495-5765-6INACTIVATED-ND
Standard Package 600
Win Source Part Number 1004939-B82791H2501N001
Ultra Librarian 3D Model Ultra Librarian B82791H2501N001 CAD Model

Description

The EPCOS - TDK Electronics common mode choke is a power line filter that is used to suppress common mode noise.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 500mA
  • Temperature Range: -40°C to 125°C
  • Mounting: Through Hole
  • Height: 17.60mm
  • Package: 600
