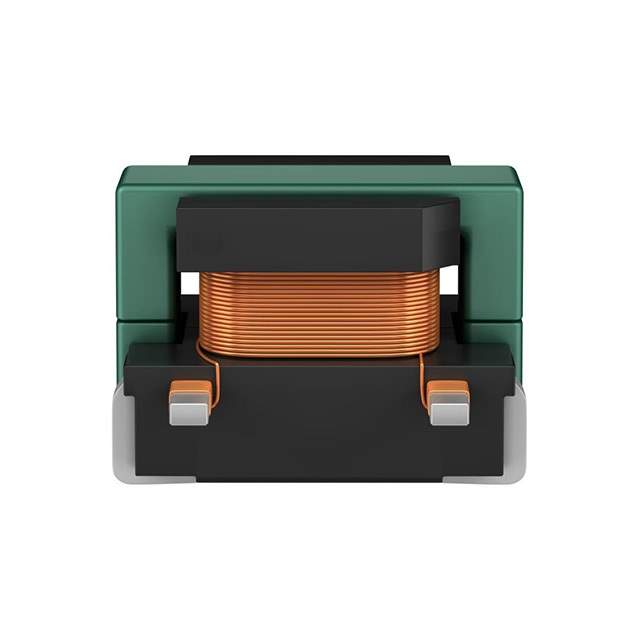

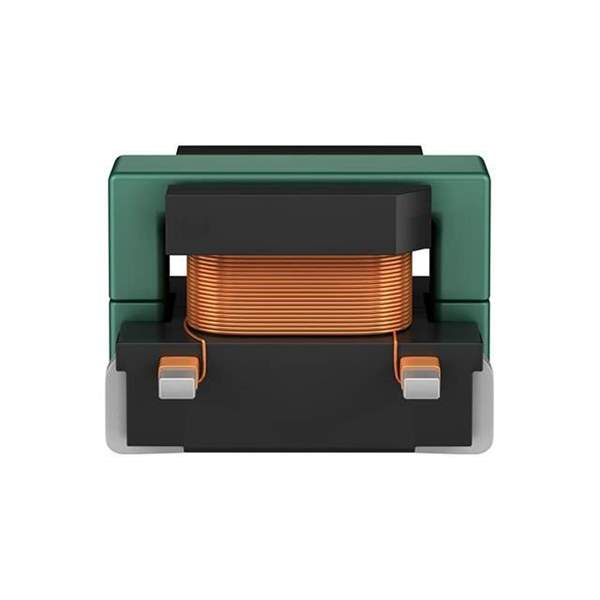

B82801A1824A100 Real Image
Same model may have multiple batches, images only for reference.

B82801A1824A100

Part No B82801A1824A100
Manufacturer EPCOS (TDK)
Catalog Current Sense Transformers
Description CURR SENSE XFMR 1:100 SMD  /  Current Sense Transformer 50kHz ~ 1MHz 2.5mOhm Primary, 8.7Ohm Secondary 820 µH Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr EPCOS - TDK Electronics
Series B82801A
Package Tape & Reel
Frequency Range 50kHz ~ 1MHz
Type Invasive
Inductance 820 µH
DC Resistance (DCR) 2.5mOhm Primary, 8.7Ohm Secondary
Mounting SMD (SMT)
Dimension 0.185" L x 0.138" W (4.70mm x 3.50mm)
Height - Seated (Max) 0.138" (3.50mm)
Termination Style J Lead
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names B82801A1824A100-ND,495-B82801A1824A100CT,495-B82801A1824A100DKR,495-B82801A1824A100TR
Standard Package 600
Win Source Part Number 1139609-B82801A1824A100
Ultra Librarian 3D Model Ultra Librarian B82801A1824A100 CAD Model

Description

The EPCOS - TDK Electronics B82801A1824A100 is a current sense transformer that has an inductance of 820 μH and a DC resistance of 2.5mOhm Primary and 8.7Ohm Secondary.

  • Height: 0.138" (3.50mm)
  • Packaging: Tape and reel
  • Mounting: Surface mount device
  • Frequency Range: 50kHz ~ 1MHz
