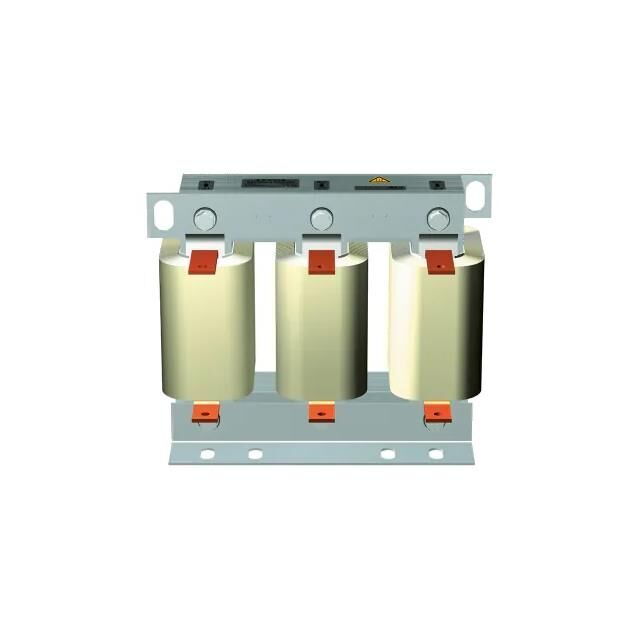

B86305L0021R000 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B86305L0021R000

Part No B86305L0021R000
Manufacturer EPCOS (TDK)
Catalog Power Line Filter Modules
Description Three Phase (Delta) EMC/EMI Line Filter 21 A 520V 50/60Hz Single Stage Terminal Block
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B86305
Packaging Box
Filter Type Three Phase (Delta)
Configuration Single Stage
Voltage - Rated AC 520V
Current 21 A
Frequency - Operating 50/60Hz
Applications Converter
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Terminal Block
Inductance 1.4mH
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1482523-B86305L0021R000
Ultra Librarian 3D Model Ultra Librarian B86305L0021R000 CAD Model
