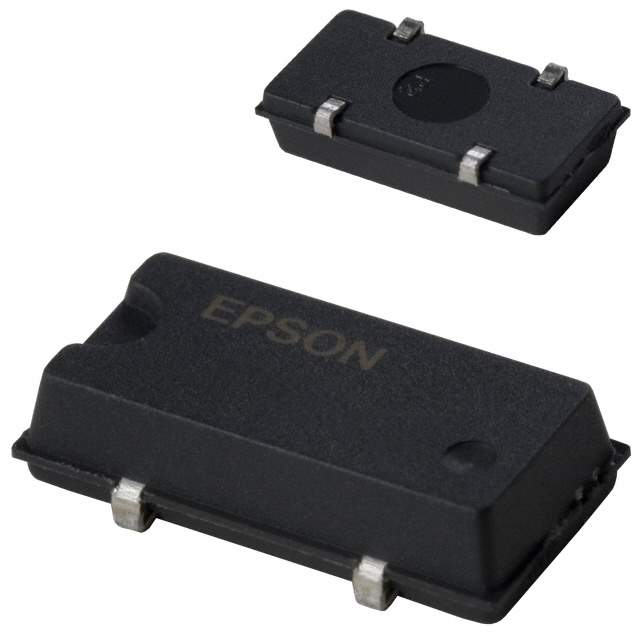

SG-8002JC 75.0000M-PCCL3 ROHS

Part No SG-8002JC 75.0000M-PCCL3 ROHS
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 75.0000MHZ CMOS SMD / 75 MHz XO (Standard) CMOS Oscillator 5V Enable/Disable 4-SOJ, 5.08mm pitch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG-8002JC
Package Tape & Reel (TR)
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 75 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 5V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 28mA
Mounting SMD (SMT)
Package / Case 4-SOJ, 5.08mm pitch
Dimension 0.413" L x 0.197" W (10.50mm x 5.00mm)
Height - Seated (Max) 0.106" (2.70mm)
Current - Supply (Disable) (Max) 16mA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names SG-8002JC 75.0000M-PCCL3 ROHS-ND,SG-8002JC75.0000M-PCCL3ROHS
Standard Package 250
Win Source Part Number 1092631-SG-8002JC 75.0000M-PCCL3 ROHS
Ultra Librarian 3D Model Ultra Librarian SG-8002JC 75.0000M-PCCL3 ROHS CAD Model

Description

The SG-8002JC 75.0000M-PCCL3 ROHS is an oscillator that is part of the Crystals, Oscillators, Resonators category.

  • Type: XO (Standard)
  • Output: CMOS output
  • Function: enable/disable
  • Package: Tape & Reel (TR)
  • Standard Package: 250 units
  • Frequency: 75 MHz
  • Frequency Stability: ±100ppm
  • Current Supply (Max): 28mA
  • Current Supply (Disable) (Max): 16mA
  • Voltage Supply: 5V
  • Temperature Range: -20°C to 70°C
  • Product Status: obsolete
