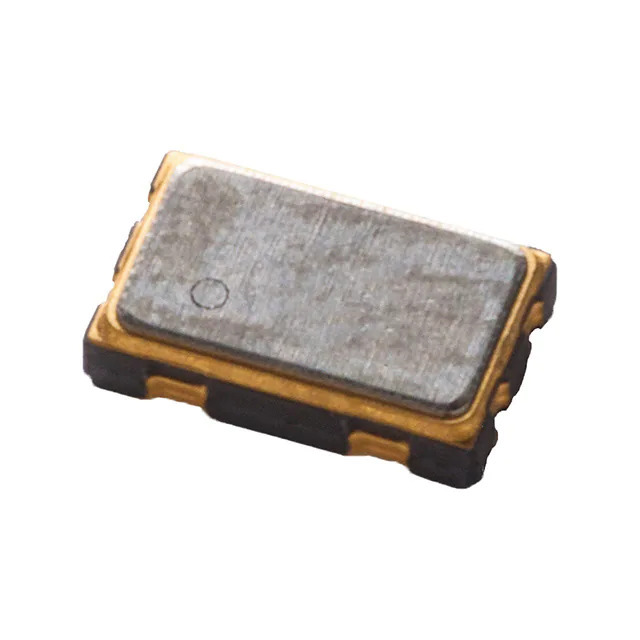

Same model may have multiple batches, images only for reference.
SG-8018CB 100.000000MHZ TJHSA Epson Electronics America Inc-Semiconductor Div
Same model may have multiple batches, images only for reference.

SG-8018CB 100.000000MHZ TJHSA

Part No SG-8018CB 100.000000MHZ TJHSA
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog Oscillators
Description XTAL OSC XO 100.0000MHZ CMOS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr EPSON
Series SG-8018CB
Package Bulk
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 100 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.62V ~ 3.63V
Frequency Stability ±50ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 105°C
Current - Supply (Max) 8.1mA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.043" (1.10mm)
Current - Supply (Disable) (Max) 3.5mA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1366451-SG-8018CB 100.000000MHZ TJHSA
Ultra Librarian 3D Model Ultra Librarian SG-8018CB 100.000000MHZ TJHSA CAD Model

Description

The SG-8018CB is a crystal oscillator from EPSON.

  • Series: SG-8018CB
  • Frequency: 100 MHz
  • Mounting Type: Surface Mount
  • Package: 4-SMD, No Lead
  • Voltage Range: 1.62V to 3.63V
  • Current Supply: 8.1mA (maximum)
  • Standby Function: Yes
  • Output: CMOS
  • Frequency Stability: ±50ppm
  • Size: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Seated Height: 0.043" (1.10mm)
  • Status: Obsolete
  • RoHS Compliant: Yes
