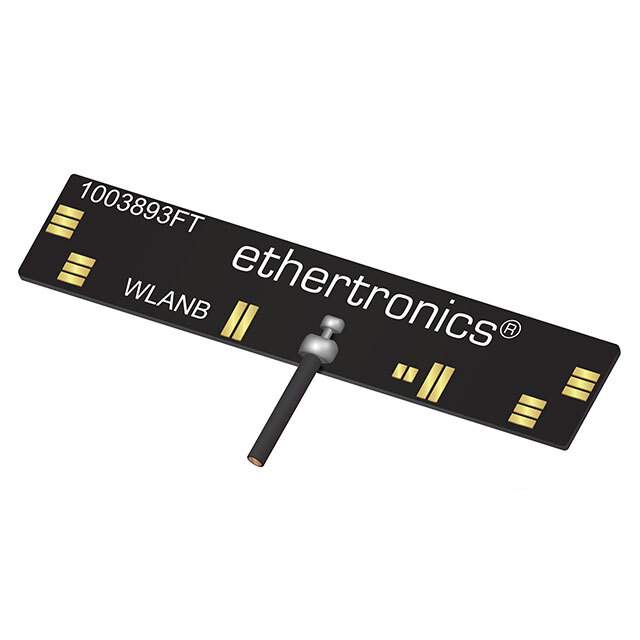

1003893FT-AA10L0025 Real Image
Same model may have multiple batches, images only for reference.

1003893FT-AA10L0025

Part No 1003893FT-AA10L0025
Manufacturer Ethertronics/AVX
Catalog RF Antennas
Description ANTENNA ASSY, WLANB FT AA10 0025 / 2.4425GHz WLAN PCB Trace RF Antenna 2.4GHz ~ 2.485GHz 3.3dBi U.FL Adhesive
Datasheet
1003893FT-AA10L0025 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Ethertronics/AVX
Package Box
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4425GHz
Frequency Range 2.4GHz ~ 2.485GHz
Antenna Type PCB Trace
Number of Bands 1
VSWR 1.5
Gain 3.3dBi
Power - Max 500 mW
Features Cable - 25mm
Termination U.FL
Mounting Type Adhesive
Height (Max) 0.005" (0.12mm)
Applications WLAN
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8517.79.0000
Win Source Part Number 1351382-1003893FT-AA10L0025
Ultra Librarian 3D Model Ultra Librarian 1003893FT-AA10L0025 CAD Model

Description

The 1351382-1003893FT-AA10L0025 RF Antenna is a high-quality cable antenna used for WLAN applications.

  • Frequency Range: 2.4GHz ~ 2.485GHz
  • Maximum Power: 500 mW
  • Gain: 3.3dBi
  • VSWR: 1.5
  • Termination: U.FL
  • Package: Box
  • Mounting Type: PCB Trace, Adhesive
  • Frequency Group: UHF (2GHz ~ 3GHz)
  • Frequency: 2.4425GHz
  • Height (Max): 0.005" (0.12mm)
  • Standard Package: 1,000
  • Manufacturer: Ethertronics/AVX
  • ECCN: EAR99
