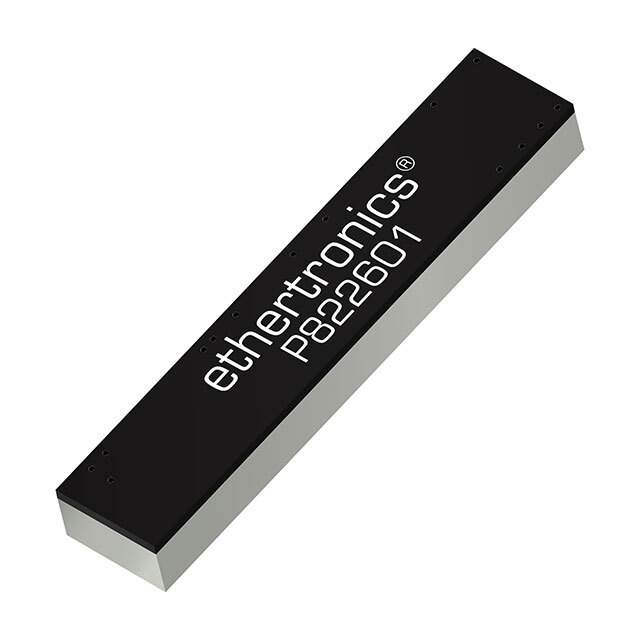

P822601 Real Image
Same model may have multiple batches, images only for reference.

P822601

Part No P822601
Manufacturer Ethertronics/AVX
Catalog RF Antennas
Description RF ANT 700MHZ/750MHZ FLAT BAR  /  700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA Flat Bar RF Antenna 700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz 1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi Solder Surface Mount
Datasheet
P822601 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Ethertronics/AVX
Series Prestta™
Package Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard Cellular
Frequency Group Wide Band
Frequency (Center/Band) 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz
Frequency Range 700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz
Antenna Type Flat Bar
Number of Bands 8
VSWR 2.5
Gain 1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi
Power - Max 2 W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.126" (3.20mm)
Applications CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8529.10.9100
Other Names 939-1057-6INACTIVE,939-1057-1,939-1057-6-ND,939-1057-2,17010024,939-1057-6,P822601-ND,Q9440574
Standard Package 1,500
Win Source Part Number 1009325-P822601
Ultra Librarian 3D Model Ultra Librarian P822601 CAD Model

Description

The P822601 is a Prestta™ RF antenna designed by Ethertronics/AVX.

  • Antenna Type: Flat Bar
  • Termination: Solder
  • Maximum Power: 2 W
  • Frequency Range: 700MHz to 787MHz, 824MHz to 960MHz, 1.71GHz to 2.17GHz, and 2.5GHz to 2.7GHz
  • Package: Tape and Reel or Cut Tape
  • Standard Package: 1,500
  • VSWR: 2.5
  • Gain Range: 1.1dBi to 3.9dBi
  • Applications: CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
