Same model may have multiple batches, images only for reference.

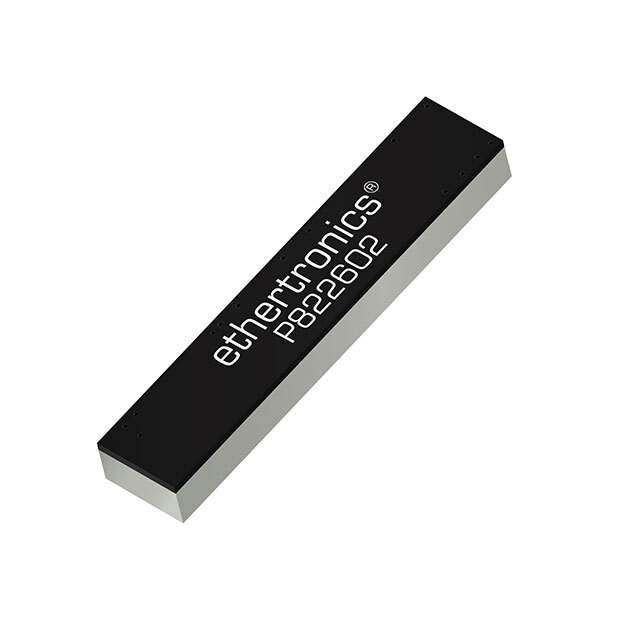

P822602 Real Image
Same model may have multiple batches, images only for reference.

P822602

Part No P822602
Manufacturer Ethertronics/AVX
Catalog RF Antennas
Description RF ANT 700MHZ/750MHZ FLAT BAR
Datasheet
P822602 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 8 Weeks
Features 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA Flat Bar RF Antenna 700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz 1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi Solder Surface Mount
Manufacturer Ethertronics/AVX
Series Prestta™
Package Reel - TR
Mounting Surface Mount
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8529.10.9100
Other Part Number 939-1061-6, 939-1061-6INACTIVE, 939-1061-6-ND, 939-1061-1, 939-1061-2
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 929913-P822602
Ultra Librarian 3D Model Ultra Librarian P822602 CAD Model

Description

The 929913-P822602 RF Antenna is a high-quality flat bar antenna used for CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, and WCDMA applications.

  • Applications: CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
  • Frequency Range: 700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz
  • Gain: 1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi
  • VSWR: 2.5
  • Termination: Solder
  • Package: Reel
  • Antenna Type: Surface Mount
  • Bands: Eight Bands
  • Height: 0.126" (3.20mm)
  • Standard Package: 1,500
  • Manufacturer: Ethertronics/AVX
  • ECCN: EAR99 compliant
