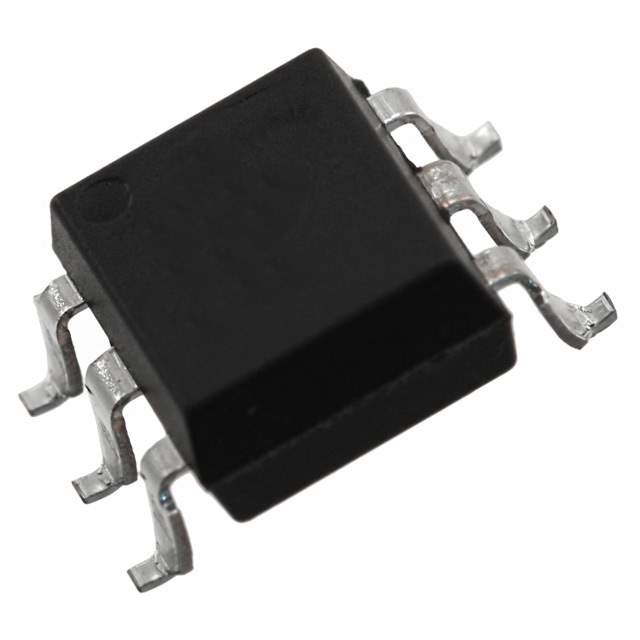

The EL3053S1(TA) is an optoisolator with a Triac output manufactured by Everlight Electronics. Optoisolators, also known as optocouplers, are semiconductor devices that use light to transfer electrical signals between two isolated circuits. This isolation helps protect sensitive circuits from high voltages or noisy environments. The Triac output makes it suitable for controlling AC loads.

Applications:

• Solid-state relays (SSRs): Triggering the Triac in an SSR to control AC loads.
• Motor control: Isolating the control circuitry from the high-voltage motor drive circuit.
• Lighting control: Switching AC power to lighting systems.
• Industrial control: Isolating control signals in industrial automation equipment.
• Power supplies: Providing feedback isolation in switching power supplies.

Features:

• Triac output: Allows for direct control of AC loads.
• High isolation voltage: Provides a high degree of electrical isolation between input and output.
• Low input current: Requires a small input current to activate the output.
• Zero-crossing detection: Reduces switching noise and improves reliability.
• RoHS compliant: Meets environmental standards.

Benefits:

• Electrical isolation: Protects sensitive circuits from high voltages and noisy environments.
• Simplified circuit design: Allows for direct control of AC loads without complex interface circuitry.
• Reduced switching noise: Zero-crossing detection minimizes electromagnetic interference (EMI).
• Increased reliability: Optoisolation prevents ground loops and other noise-related issues.
• Compliance with environmental standards: Meets RoHS requirements, making it suitable for global markets.

Additional Details:

The EL3053S1(TA) has a specific isolation voltage, trigger current, and blocking voltage that must be considered based on the application. The '(TA)' suffix likely indicates a specific tape and reel packaging. Consult the Everlight datasheet for detailed specifications, including isolation voltage, trigger current, holding current, and surge current capability. The specific package type (e.g., DIP, SMD) and pinout should also be verified.

Optoisolators consist of an LED on the input side and a photosensitive device (in this case, a Triac) on the output side. When current flows through the LED, it emits light, which activates the Triac, allowing current to flow through the output circuit.
