The SP6201EM5-L-3.3/TR is a low dropout (LDO) linear regulator manufactured by Exar Corporation. The 'L-3.3' indicates a fixed output voltage of 3.3V, and the '/TR' suffix signifies that the device is supplied on tape and reel for automated assembly. This regulator is designed for applications requiring a stable 3.3V supply, commonly used in various electronic devices.

Applications:

• Fixed 3.3V Power Rail: Specifically designed for applications needing a stable 3.3V supply, such as powering microcontrollers, sensors, memory devices, and other digital logic circuits.
• Battery-Powered Devices: The low dropout voltage makes it suitable for battery-powered applications, maximizing battery life by operating efficiently even as the battery voltage decreases.
• Portable Electronics: Ideal for use in devices like smartphones, tablets, handheld gaming consoles, and other portable devices where space and power efficiency are key considerations.
• Microcontroller Power Supplies: Provides a stable and regulated 3.3V voltage for microcontrollers and other digital logic devices, ensuring reliable operation.
• Post Regulation: Can be used as a post-regulator after a switching regulator to provide a cleaner and more precise 3.3V voltage supply.

Features:

• Fixed 3.3V Output Voltage: Provides a precise and stable 3.3V output voltage without the need for external voltage setting components.
• Low Dropout Voltage: Ensures efficient operation even when the input voltage is close to the output voltage, maximizing battery life.
• Low Quiescent Current: Minimizes power consumption when the regulator is in standby or lightly loaded conditions, improving overall energy efficiency.
• Overcurrent Protection: Protects the regulator and the load from damage due to excessive current draw, enhancing system reliability.
• Thermal Shutdown: Shuts down the regulator in case of overheating, preventing damage to the device and ensuring system safety.
• Stable with Ceramic Capacitors: Designed to be stable with low-ESR ceramic output capacitors, reducing the size and cost of the application by minimizing the need for external components.

Benefits:

• Stable and Accurate 3.3V Supply: Ensures reliable operation of powered devices by providing a stable and precise voltage, minimizing performance fluctuations.
• Extended Battery Life: The low dropout voltage and low quiescent current contribute to increased system efficiency, extending battery life in portable devices.
• Enhanced System Reliability: Overcurrent protection and thermal shutdown features protect the regulator and the load from damage, improving overall system reliability.
• Reduced Component Count: Stable operation with ceramic capacitors reduces the need for external components, simplifying the design and reducing cost.
• Automated Assembly: The tape and reel packaging is optimized for automated pick-and-place assembly processes, streamlining manufacturing.

Additional Details:

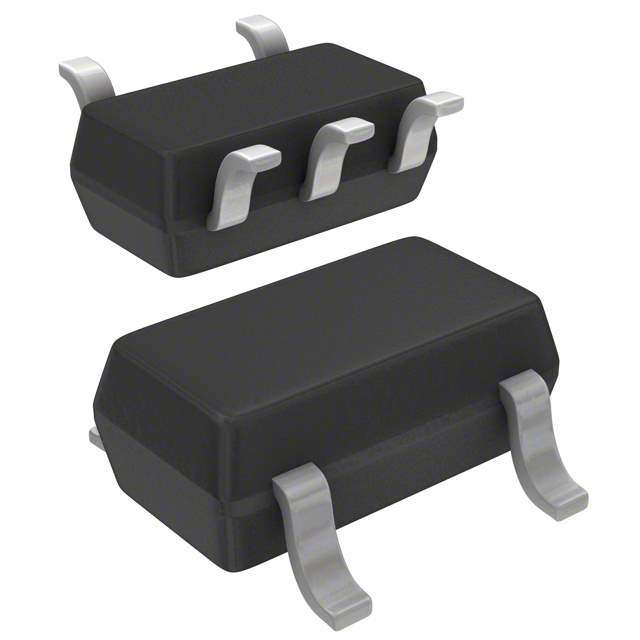

The SP6201EM5-L-3.3/TR typically comes in a small surface-mount package, such as SOT-23-5, making it suitable for high-density circuit boards. It is designed to operate over a specified range of input voltages above 3.3V, with the exact range detailed in the product datasheet. The use of ceramic capacitors is recommended for stability and noise reduction. It is crucial to consult the datasheet for specific operating conditions, component selection guidelines, and thermal considerations to ensure optimal performance and reliability.
