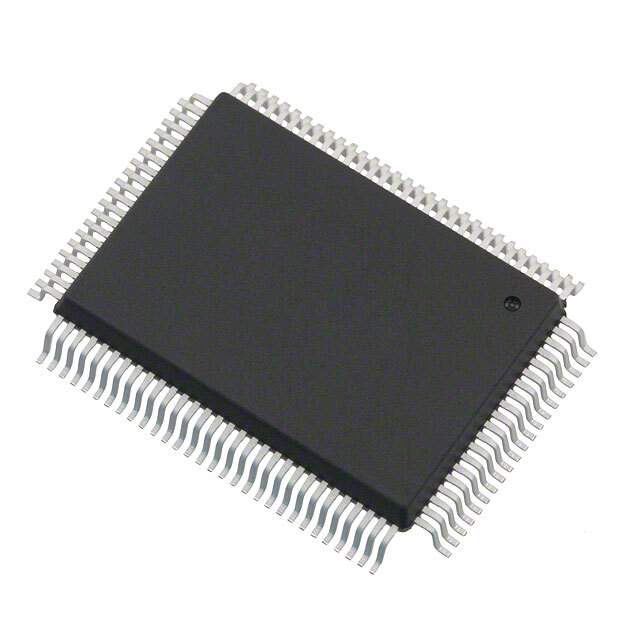

ST16C654IQ100-F Real Image
Same model may have multiple batches, images only for reference.

ST16C654IQ100-F

Part No ST16C654IQ100-F
Manufacturer Exar Corporation
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description IC UART FIFO 64B QUAD 100QFP / UART 4-CH 64byte FIFO 3.3V/5V 100-Pin LQFP
Datasheet
ST16C654IQ100-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Exar Corporation
Packaging Tray
Features Internal Oscillator, Timer/Counter
Number of Channels 4, QUART
FIFO's 64 Byte
Protocol RS232
Data Rate (Maximum) 1.5Mbps
Operating Supply Voltage 2.97 V ~ 5.5 V
With Auto Flow Control Yes
With IrDA Encoder/Decoder Yes
With False Start Bit Detection Yes
With Modem Control Yes
Mounting SMD
Package 100-BQFP
Manufacturer Package 100-QFP (14x20)
Win Source Part Number 795510-ST16C654IQ100-F
Popularity Medium
Supply and Demand Status Limited
Family Name ST16C654
Introduction Date June 21, 1999
ECCN EAR99
Country of Origin Indonesia, Taiwan
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian ST16C654IQ100-F CAD Model

Description

The ST16C654IQ100-F from Exar Corporation is an integrated circuit that is used in various electronic applications.

  • Supply Voltage: 2.97 V ~ 5.5 V
  • Data Rate (Maximum): 1.5Mbps
  • Package: 100-BQFP
  • Family: ST16C654
  • Channels: 4
  • FIFO: 64 Byte
  • Features: Auto Flow Control, IrDA encoder/decoder, False Start Bit Detection, Modem Control
  • Estimated EOL Date: 2028
  • Halogen Free: Yes
