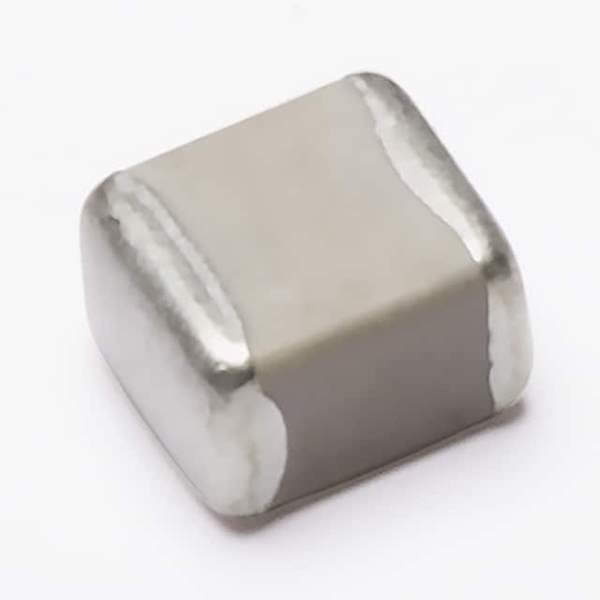

501CHB5R6BSLE EXXELIA Temex
Same model may have multiple batches, images only for reference.

501CHB5R6BSLE

Part No 501CHB5R6BSLE
Manufacturer EXXELIA Temex
Catalog Ceramic Capacitors
Description CAP CER 5.6PF 500V P100 1111  /  5.6 pF ±0.1pF 500V Ceramic Capacitor P100 1111 (2828 Metric)
Datasheet
501CHB5R6BSLE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr EXXELIA Temex
Series CH
Package Tape & Reel (TR)
Capacitance 5.6 pF
Tolerance ±0.1pF
Voltage - Rated 500V
Temperature Coefficient P100
Temperature Range - Operating -55°C ~ 150°C
Features High Q, Low Loss, Ultra Low ESR
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 1111 (2828 Metric)
Dimension 0.110" L x 0.110" W (2.80mm x 2.80mm)
Thickness (Max) 0.102" (2.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 2821-501CHB5R6BSLETR
Standard Package 1,000
Win Source Part Number 1170535-501CHB5R6BSLE
Ultra Librarian 3D Model Ultra Librarian 501CHB5R6BSLE CAD Model

Description

The 1170535-501CHB5R6BSLE is a ceramic capacitor from the CH series by EXXELIA Temex. It is designed for RF, microwave, and high-frequency applications.

  • Series: CH
  • Application: RF, Microwave, High Frequency
  • Capacitance: 5.6 pF
  • Voltage Rating: 500V
  • Tolerance: ±0.1pF
  • Temperature Coefficient: P100
  • Features: High Q, Low Loss, Ultra-Low ESR
  • Package: 1111 (2828 metric)
  • Mounting Type: Surface Mount, MLCC
  • Packaging: Tape and Reel
  • Pieces per Package: 1,000
  • Thickness: 0.102" (2.60mm)
  • Dimensions: 0.110" L x 0.110" W (2.80mm x 2.80mm)
  • Operating Temperature: -55°C ~ 150°C
  • REACH: Unaffected
  • ECCN: EAR99
