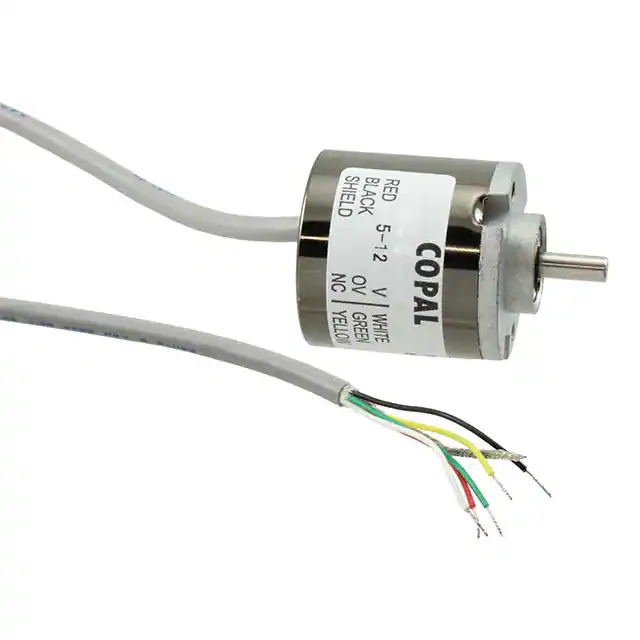

RE30E-1024-213-1 Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

RE30E-1024-213-1

Part No RE30E-1024-213-1
Manufacturer Nidec Copal Electronics
Catalog Encoders
Description ROTARY ENCODER OPTICAL 1024PPR
Datasheet
RE30E-1024-213-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders - Industrial
Mfr Nidec Components Corporation
Series RE30E
Package Tray
Product Status Active
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 1024
Voltage - Supply 5V ~ 12V
Actuator Type Shaft
Detent No
Built in Switch No
Mounting Type Chassis Mount
Orientation User Selectable
Termination Style Wire Leads
Rotational Life (Cycles Min) -
Base Product Number RE30E
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 1376132-RE30E-1024-213-1
Ultra Librarian 3D Model Ultra Librarian RE30E-1024-213-1 CAD Model

Description

The RE30E is a high-quality industrial encoder manufactured by Nidec Components Corporation.

  • Output: Quadrature with an incremental index
  • Supply Voltage: 5V to 12V
  • Mounting Method: Chassis mount
  • Pulse per Revolution: 1024
  • Mechanism: Optical
  • Orientation: User-selectable
  • Status: Active
