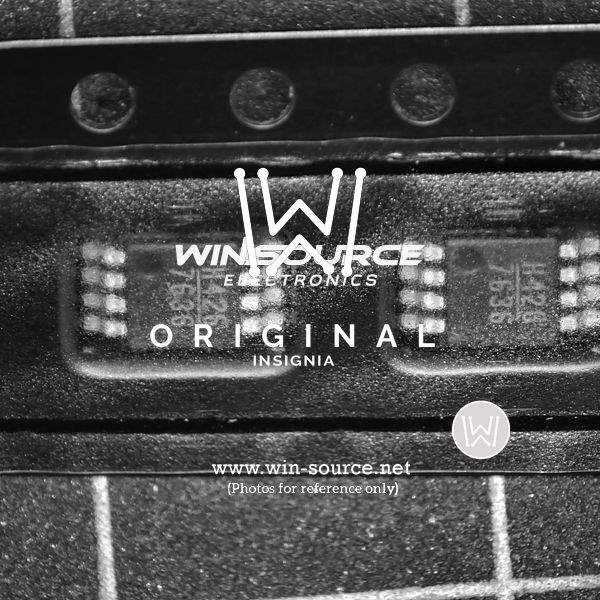

The HMC426MS8E from Analog Devices Inc. is a high-performance, passive double-balanced mixer in a surface-mount package designed for RF and microwave applications. This versatile device is ideal for use in telecommunications, radar systems, test equipment, and satellite communications, offering a broad frequency range and excellent isolation characteristics.

Key Features

• Frequency Range: The mixer supports a wide frequency range, with an RF/LO frequency from 2.5 GHz to 7.0 GHz and an IF frequency from DC to 3.5 GHz, making it suitable for various applications.
• Conversion Loss: It offers a low conversion loss of 8 dB typical, which helps to maintain signal integrity and reduce the need for additional amplification.
• LO/RF Isolation: The device provides excellent LO to RF isolation of 45 dB typical, ensuring minimal leakage between the local oscillator and the RF signal.
• LO/IF Isolation: With an LO to IF isolation of 35 dB typical, it minimizes the potential for signal interference, resulting in cleaner outputs.
• Input IP3: The HMC426MS8E features a high input third-order intercept point (IP3) of 17 dBm, indicating strong linearity and the ability to handle high signal levels without significant distortion.
• Package: This mixer comes in an MSOP8G package, which is compact and suitable for space-constrained applications.

Applications

• Wireless Infrastructure
• Microwave Radio & VSAT
• Military & Space
• Test Equipment
• Satellite Communications

Additional Information

The HMC426MS8E is part of Analog Devices' extensive range of RF and microwave products, designed to meet the demanding requirements of advanced electronic systems. Its robust design ensures reliable performance in challenging environments, while its ease of integration facilitates quick deployment in a variety of circuits. For designers and engineers looking for a mixer that offers both flexibility and performance, the HMC426MS8E is an excellent choice.
