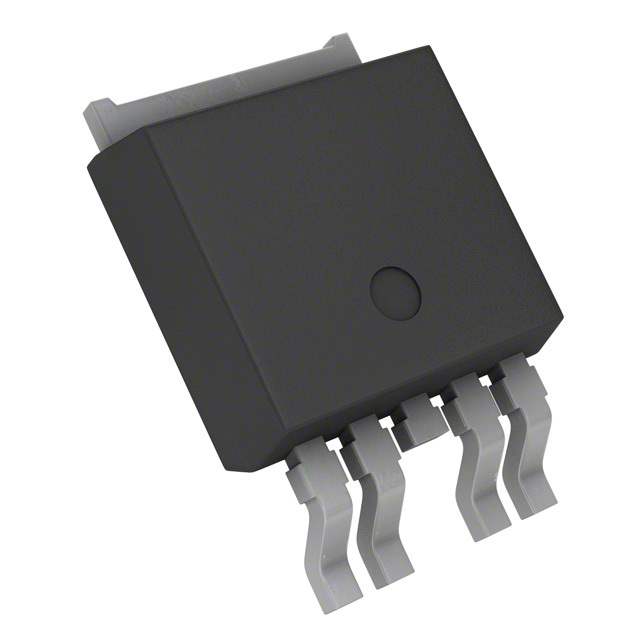

FAN1582D15X Real Image
Same model may have multiple batches, images only for reference.

FAN1582D15X

Part No FAN1582D15X
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 1.5V 3A TO252-5
Datasheet
FAN1582D15X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 7V
Nominal Output Voltage (Min/Fixed) 1.5V
Dropout Voltage-Max 1.18V @ 3A
Output Current 3A
Operating Supply Current 6mA
PSRR 80dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating -65°C to 150°C
Regulator Topology Positive Fixed
Output Voltage 1.5V
Voltage - Dropout (Typical) 0.4V @ 3A
Mounting SMD (SMT)
Case / Package TO-252-5
Win Source Part Number 066754-FAN1582D15X
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FAN1582D15X CAD Model

Description

Product Description

The FAN1582D15X voltage regulator provides a fixed output voltage of 1.5V, capable of delivering up to 3A of current. Its exceptional load regulation and thermal efficiency make it suitable for applications involving highly sensitive electronic systems.

Applications

  • Automotive electronics
  • Data communication systems
  • Industrial automation

Features and Benefits

  • Low dropout voltage: Enhanced efficiency in power conversion
  • Robust design: Provides stability under transient load conditions
  • Enhanced safety: Integrated over-temperature and over-current protection

Additional Details

The FAN1582D15X comes in a D2PAK-3 package, allowing for efficient heat dissipation and integration in space-constrained designs. The device is tested for long-term reliability, providing peace of mind in critical applications.
