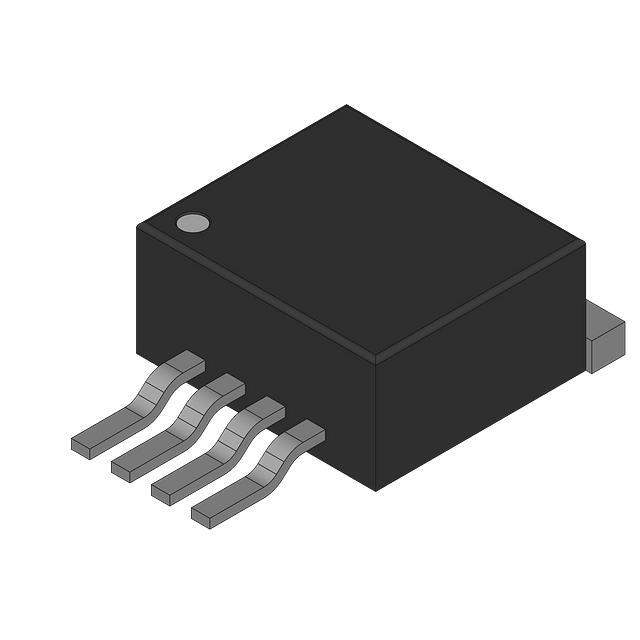

FAN1582DX Real Image
Same model may have multiple batches, images only for reference.

FAN1582DX

Part No FAN1582DX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 3A TO252-5
Datasheet
FAN1582DX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 7V
Nominal Output Voltage (Min/Fixed) 1.25V
Maximum Output Voltage 5.7V
Dropout Voltage-Max 1.18V @ 3A
Output Current 3A
Operating Supply Current 6mA
PSRR 80dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating -65°C to 150°C
Regulator Topology Positive Adjustable
Output Voltage 1.25 V to 5.7 V
Voltage - Dropout (Typical) 0.4V @ 3A
Mounting SMD (SMT)
Case / Package TO-252-5
Win Source Part Number 066755-FAN1582DX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FAN1582DX CAD Model

Description

Product Description

The FAN1582DX is engineered for high-efficiency power regulation, delivering a steady output voltage with minimal variations. This device is especially suited for applications demanding reliability under varying loads.

Applications

  • Consumer electronics
  • Power management systems
  • Telecommunications equipment

Features and Benefits

  • High power density: Capable of supporting up to 3A output
  • Low thermal resistance: Excellent for thermal management
  • Enhanced transient response: Quickly adapts to changes in load conditions

Additional Details

The FAN1582DX features a flexible pin configuration and is manufactured using advanced process technologies to ensure high performance in demanding applications. It is a popular choice for designers seeking dependable voltage regulation solutions.
