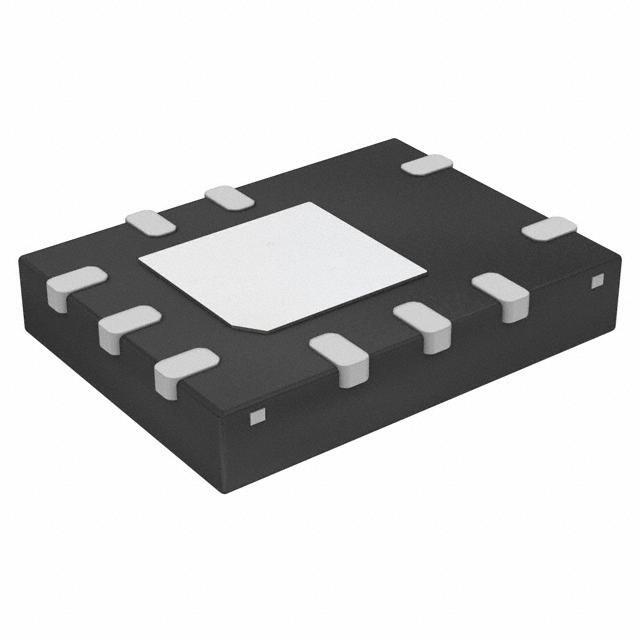

FAN501AMPX Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FAN501AMPX

Part No FAN501AMPX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC CTRLR DC-DC MULTIPH MLP / DC/DC Cntrlr Single-OUT Flyback 10-Pin MLP EP T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Output Isolation Isolated
Topology Flyback
Voltage - Start Up 17.5V
Supply Voltage - Operating 6 V to 30 V
Duty Cycle 68.5%
Frequency - Switching 85kHz to 140kHz
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Operating Temperature -40°C to 125°C (TA)
Case / Package 10-MLP (4x3)
Mounting Surface Mount
Win Source Part Number 1037679-FAN501AMPX
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Family Name FAN501A
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2021
Ultra Librarian 3D Model Ultra Librarian FAN501AMPX CAD Model

Description

The Fairchild/ON Semiconductor FAN501AMPX is an isolated flyback topology integrated circuit with a duty cycle of 68.5% and a frequency switching range of 85kHz to 140kHz.

  • Topology: Flyback, Isolated
  • Duty Cycle: 68.5%
  • Frequency Switching: 85kHz ~ 140kHz
  • Voltage - Start Up: 17.5V
  • Operating Temperature: -40°C ~ 125°C
  • Fault Protection: Current Limiting, Over Temperature, Over Voltage
  • Package / Case: 10-MLP (4x3)
  • Voltage - Supply: 6 V ~ 30 V
  • Lifecycle Status: Active
  • Popularity: High
  • Supply & Demand Status: Balanced
  • Estimated EOL: 2021
  • Halogen Free: Yes
