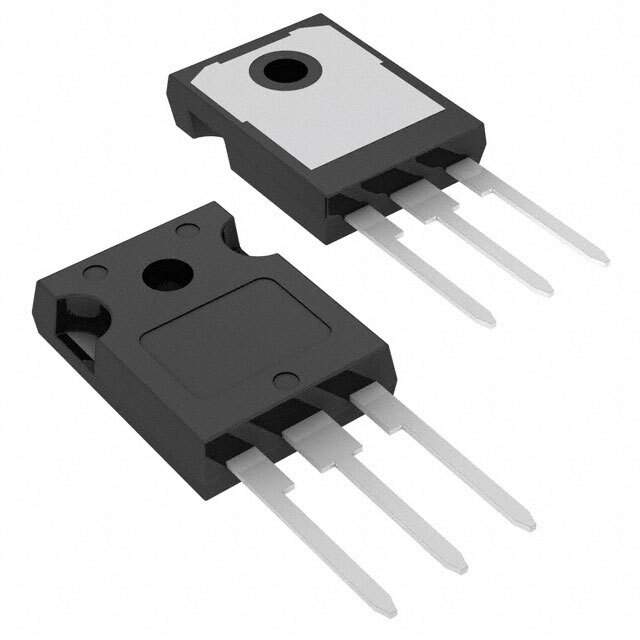

The FCH110N65F-F155 is an N-channel MOSFET transistor from Fairchild Semiconductor.

• Channel Type: N-channel
• Series: SuperFET II FRFET®
• Drain to Source Voltage (Vdss): 650V
• Current-Continuous Drain (Id) @ 25°C: 35A (Tc)
• Rds On (Max) @ Id, Vgs: 110mOhm @ 17.5A, 10V
• Vgs(th) (Max) @ Id: 5V @ 3.5mA
• Power Dissipation (Max): 357W (Tc)
• Gate Charge (Qg) (Max) @ Vgs: 145 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 4895 pF @ 100 V
• Mounting Type: through hole
• Package: TO-247-3
• Gate Drive Voltage (Max Rds On, Min Rds On): 10V
