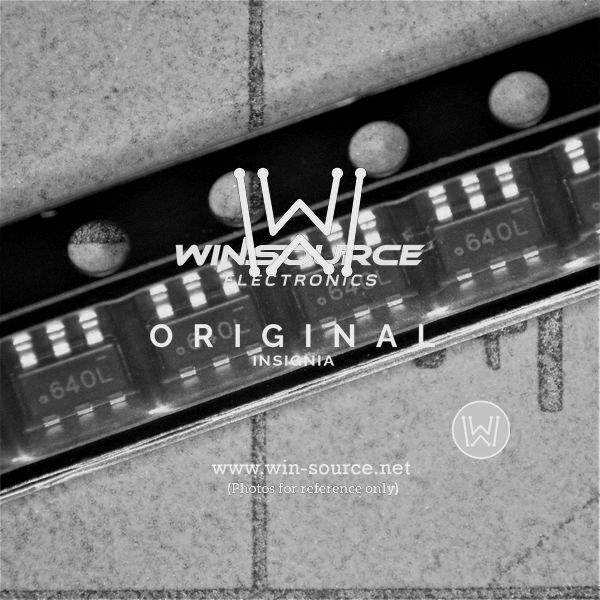

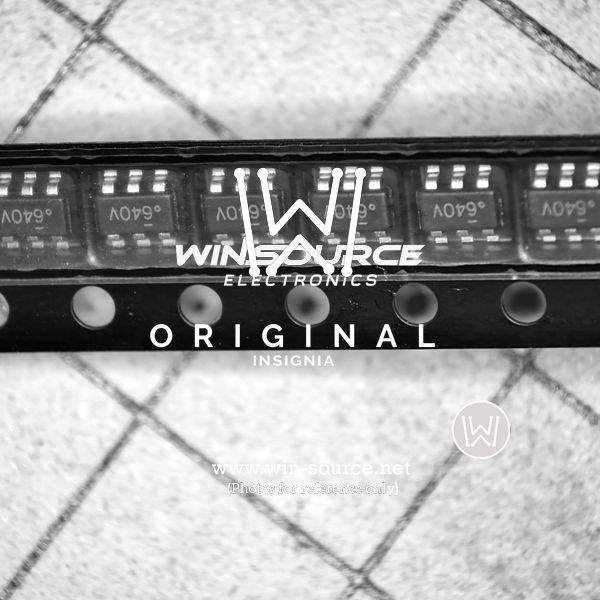

FDC640P Real Image FDC640P real image4032 FDC640P Real Image
Same model may have multiple batches, images only for reference.
FDC640P Real Image FDC640P real image4032 FDC640P Real Image
FDC640P Real Image FDC640P real image4032 FDC640P Real Image
Same model may have multiple batches, images only for reference.

FDC640P

Part No FDC640P
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 4.5A SSOT-6
Datasheet
FDC640P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Gate-Source Threshold Voltage 1.5V @ 250μA
Max Gate Charge 13nC @ 4.5V
Max Input Capacitance 890pF @ 10V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 1.6W (Ta)
Maximum Rds On at Id,Vgs 53 mOhm @ 4.5A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SuperSOT-6
Dimension SOT-23-6 Thin, TSOT-23-6
Win Source Part Number 015920-FDC640P
Family Name FDC640P
Introduction Date August 08, 2000
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Power Management, Industrial
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDC640P CAD Model

Description

FDC640P P-Channel MOSFET

The FDC640P is a reliable P-channel MOSFET offering high efficiency and performance for negative polarity applications. Ideal for voltage regulation and protection circuits, it combines speed and reliability in a single component.

Applications

  • Voltage regulation systems
  • Protection circuits
  • Reverse polarity protection

Features and Benefits

  • Low gate charge for rapid switching
  • High-iduality power handling capability
  • Optimized for low-noise operation

Additional Details

With a drain-source voltage of -20V, the FDC640P is calibrated for scenarios requiring high-speed switching and robust performance in power control circuits.
