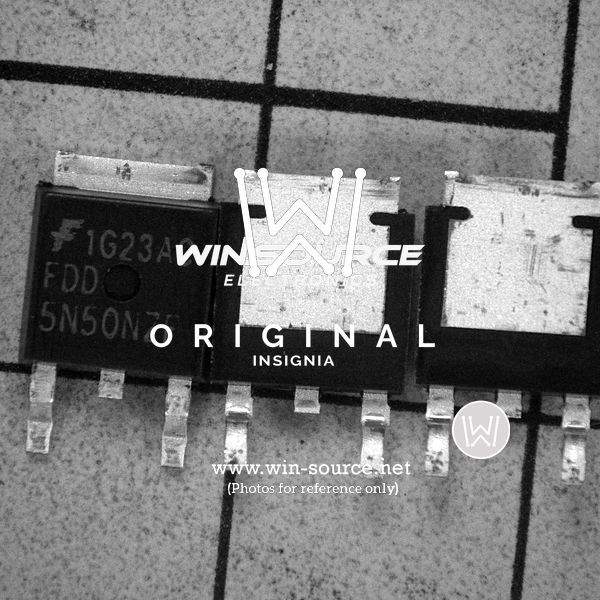

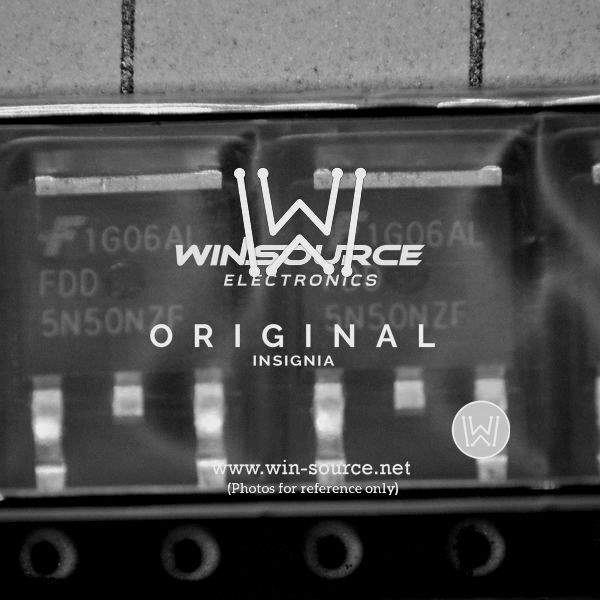

FDD5N50NZFTM Real Image FDD5N50NZFTM real image4054 FDD5N50NZFTM real image4055
Same model may have multiple batches, images only for reference.
FDD5N50NZFTM Real Image FDD5N50NZFTM real image4054 FDD5N50NZFTM real image4055
FDD5N50NZFTM Real Image FDD5N50NZFTM real image4054 FDD5N50NZFTM real image4055
Same model may have multiple batches, images only for reference.

FDD5N50NZFTM

Part No FDD5N50NZFTM
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 500V DPAK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 500V
Continuous Drain Current at 25°C 3.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 250μA
Max Gate Charge 12nC @ 10V
Max Input Capacitance 485pF @ 25V
Maximum Gate-Source Voltage ±25V
Power Dissipation (Max) 62.5W (Tc)
Maximum Rds On at Id,Vgs 1.75 Ohm @ 1.85A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package TO-252, (D-Pak)
Dimension TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number 066927-FDD5N50NZFTM
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian FDD5N50NZFTM CAD Model

Description

FDD5N50NZFTM N-Channel MOSFET

The FDD5N50NZFTM is a robust N-channel MOSFET suitable for handling a broad range of sizeable power loads. It’s designed to cater to modern power electronics' demanding needs, providing efficient and swift operation.

  • Applications/Projects:
    • Uninterruptible power supplies (UPS)
    • AC-DC converters
    • Battery chargers
    • Grid-tied and off-grid inverters
  • Features and Benefits:
    • High drain-source voltage capacity
    • High-speed switching reduces turn-on and turn-off times
    • Minimizes conduction losses for enhanced performance
    • Configured for minimal switching noise
  • Additional Details: Assembly with the FDD5N50NZFTM is simplified due to its electrically efficient structure, making it suitable for eco-friendly applications aiming at reducing energy costs and environmental footprints.
