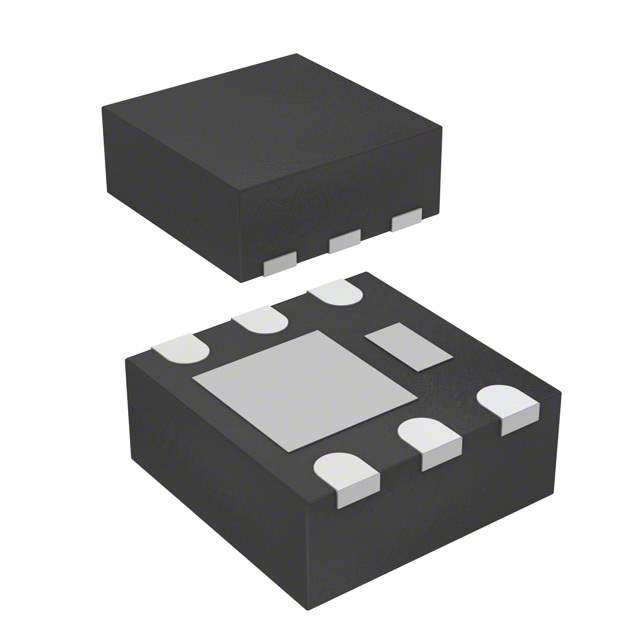

FDFMA2P857 Real Image
Same model may have multiple batches, images only for reference.

FDFMA2P857

Part No FDFMA2P857
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 3A MICROFET2X2
Datasheet
FDFMA2P857 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Gate-Source Threshold Voltage 1.3V @ 250μA
Max Gate Charge 6nC @ 4.5V
Max Input Capacitance 435pF @ 10V
Maximum Gate-Source Voltage ±8V
FET Feature Schottky Diode (Isolated)
Power Dissipation (Max) 1.4W (Ta)
Maximum Rds On at Id,Vgs 120 mOhm @ 3A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-MicroFET (2x2)
Dimension 6-VDFN Exposed Pad
Win Source Part Number 015971-FDFMA2P857
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FDFMA2P857 CAD Model

Description

Product Overview

The FDFMA2P857 is a versatile MOSFET semiconductor device designed to meet a wide range of power management needs. Its compact design does not compromise on performance, making it an ideal choice for both amateur and professional electronics projects.

Applications

  • Power Management Systems
  • Switching Applications
  • Load Switches
  • DC-DC Converters
  • Portable Electronics

Features and Benefits

  • Low On-Resistance for reduced power loss
  • Efficient thermal management
  • Compact footprint for space-saving designs
  • Highly reliable performance in various environments

Additional Details

The FDFMA2P857 is built with robust materials ensuring a long-lasting lifecycle. It supports easy integration into new and existing systems, offering flexibility and reliability.
