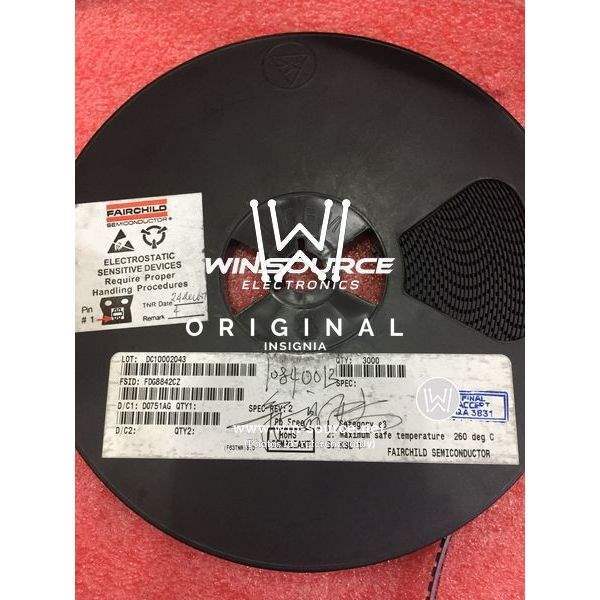

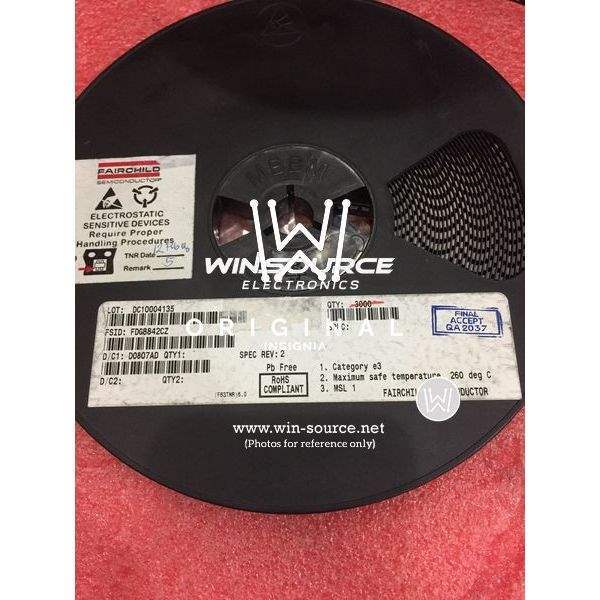

FDG8842CZ Fairchild/ON Semiconductor FDG8842CZ label picture FDG8842CZ label picture 2 FDG8842CZ real image FDG8842CZ real image 2 FDG8842CZ real image 3
Same model may have multiple batches, images only for reference.
FDG8842CZ Fairchild/ON Semiconductor FDG8842CZ label picture FDG8842CZ label picture 2 FDG8842CZ real image FDG8842CZ real image 2 FDG8842CZ real image 3
FDG8842CZ Fairchild/ON Semiconductor FDG8842CZ label picture FDG8842CZ label picture 2 FDG8842CZ real image FDG8842CZ real image 2 FDG8842CZ real image 3
Same model may have multiple batches, images only for reference.

FDG8842CZ

Part No FDG8842CZ
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N/P-CH 30V/25V SC70-6
Datasheet
FDG8842CZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
FET Type N and P-Channel
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 30V, 25V
Continuous Drain Current at 25°C 750mA, 410mA
Maximum Rds On at Id,Vgs 400 mOhm @ 750mA, 4.5V
Gate-Source Threshold Voltage 1.5V @ 250μA
Max Gate Charge 1.44nC @ 4.5V
Max Input Capacitance 120pF @ 10V
Maximum Power Dissipation 300mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SC-70-6
Win Source Part Number 015997-FDG8842CZ
Family Name FDG8842CZ
Introduction Date February 15, 2007
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Power Management
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDG8842CZ CAD Model

Description

The FDG8842CZ is an N and P-Channel FET with logic level gate manufactured by Fairchild/ON Semiconductor.

  • Packaging: Reel - TR
  • Mounting Technology: SMD (SMT)
  • Maximum Power Dissipation: 300mW
  • Drain-Source Breakdown Voltage: 30V, 25V
  • Continuous Drain Current: 750mA, 410mA @ 25°C
  • Maximum Rds On: 400 mOhm @ 750mA, 4.5V
  • Gate-Source Threshold Voltage: 1.5V @ 250μA
  • Maximum Gate Charge: 1.44nC @ 4.5V
  • Maximum Input Capacitance: 120pF @ 10V
  • Operating Temperature: -55°C to 150°C (TJ)
  • Halogen-Free: Yes
  • Applications: Industrial and Power Management
  • Quantity per Package: 3k pcs
