Same model may have multiple batches, images only for reference.

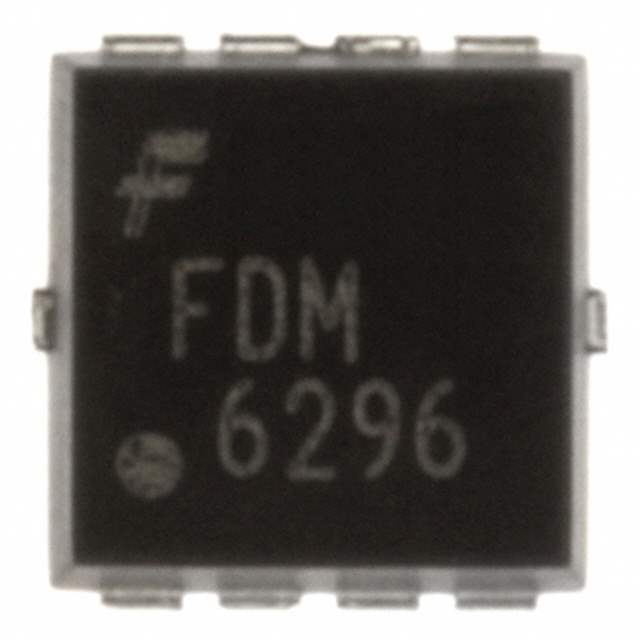

FDM6296 Real Image
Same model may have multiple batches, images only for reference.

FDM6296

Part No FDM6296
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 11.5A POWER33
Datasheet
FDM6296 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 11.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 3V @ 250μA
Max Gate Charge 17nC @ 5V
Max Input Capacitance 2005pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.1W (Ta)
Maximum Rds On at Id,Vgs 10.5 mOhm @ 11.5A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-MLP (3.3x3.3)
Dimension 8-PowerVDFN
Win Source Part Number 096608-FDM6296
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FDM6296 CAD Model

Description

The Fairchild/ON Semiconductor 096608-FDM6296 is an N-Channel MOSFET transistor.

  • Maximum Power Dissipation: 2.1W (Ta)
  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 11.5A (Ta) @ 25°C
  • Gate-Source Threshold Voltage: 3V @ 250μA
  • Maximum Gate Charge: 17nC @ 5V
  • Maximum Input Capacitance: 2005pF @ 15V
  • Package: 8-PowerVDFN
  • Drive Voltage: 4.5V, 10V (Max Rds On, Min Rds On)
  • Operating Temperature: -55°C to 150°C (TJ)
  • Status: Obsolete (EOL)
  • Popularity: Medium
