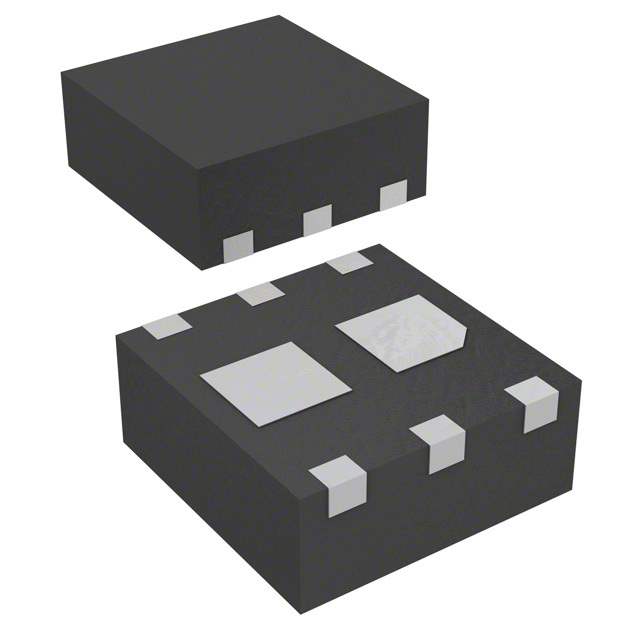

FDMA1023PZ Real Image
Same model may have multiple batches, images only for reference.

FDMA1023PZ

Part No FDMA1023PZ
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2P-CH 20V 3.7A MICROFET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
FET Type 2 P-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 3.7A
Maximum Rds On at Id,Vgs 72 mOhm @ 3.7A, 4.5V
Gate-Source Threshold Voltage 1.5V @ 250μA
Max Gate Charge 12nC @ 4.5V
Max Input Capacitance 655pF @ 10V
Maximum Power Dissipation 700mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-MicroFET (2x2)
Win Source Part Number 016002-FDMA1023PZ
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMA1023PZ CAD Model

Description

The Fairchild/ON Semiconductor FDMA1023PZ is a dual P-channel FET.

  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 3.7A @ 25°C
  • Maximum Power Dissipation: 700mW
  • Gate-Source Threshold Voltage: 1.5V @ 250μA
  • Maximum Gate Charge: 12nC @ 4.5V
  • Maximum Rds on @ Id,Vgs: 72 mOhm @ 3.7A, 4.5V
  • Package: 6-MicroFET (2x2)
  • Mounting: SMD (SMT)
  • Supply/Demand Status: Sufficient
  • Packaging: 3k pcs
