The Fairchild/ON Semiconductor 016010-FDMA430NZ is a MOSFET transistor used in power management.

• Channel Type: N-Channel
• Drain-Source Breakdown Voltage: 30V
• Continuous Drain Current (25°C): 5A
• Rds On (Max) @ Id, Vgs: 40 mOhm @ 5A, 4.5V
• Gate-Source Threshold Voltage: 1.5V @ 250μA
• Gate Charge (Max): 11nC @ 4.5V
• Input Capacitance (Max): 800pF @ 10V
• Gate-Source Voltage (Max): ±12V

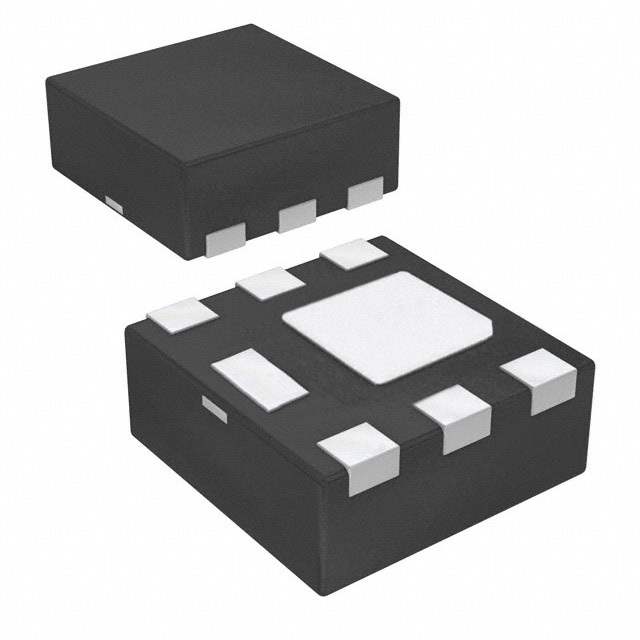

• Package: 6-MicroFET (2x2) with exposed pad
• Power Dissipation: 2.4W (Ta)
• Operating Temperature: -55°C to 150°C (TJ)
• Package Quantity: 3k pcs / reel
