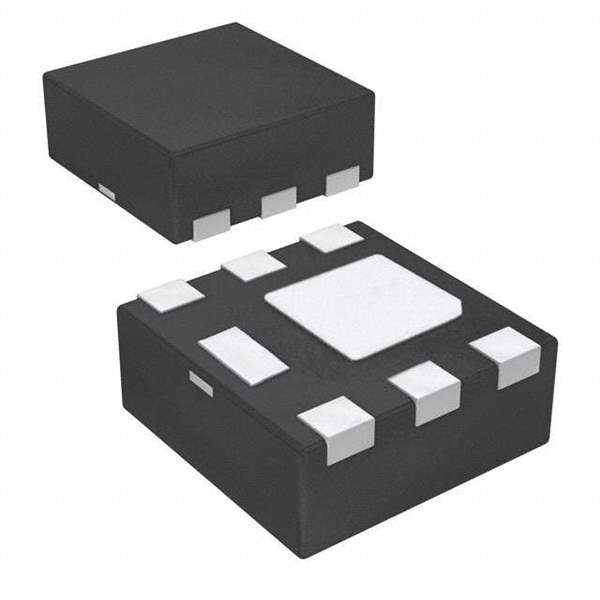

FDMA510PZ Real Image
Same model may have multiple batches, images only for reference.

FDMA510PZ

Part No FDMA510PZ
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 7.8A 6-MICROFET / Trans MOSFET P-CH 20V 7.8A 6-Pin WDFN EP T/R
Datasheet
FDMA510PZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 7.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 1.5V @ 250μA
Max Gate Charge 27nC @ 4.5V
Max Input Capacitance 1480pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 2.4W (Ta)
Maximum Rds On at Id,Vgs 30 mOhm @ 7.8A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-MicroFET (2x2)
Dimension 6-VDFN Exposed Pad
Win Source Part Number 016012-FDMA510PZ
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Family Name FDMA510PZ
Introduction Date April 24, 2007
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FDMA510PZ CAD Model

Description

The FDMA510PZ is a P-Channel MOSFET designed and manufactured by Fairchild/ON Semiconductor.

  • Maximum Power Dissipation: 2.4W (-55°C to 150°C)
  • Package: 6-MicroFET (2x2), 6-VDFN Exposed Pad
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current (25°C): 7.8A (Ta)
  • Maximum Rds On: 30 mOhm @ 7.8A, 4.5V
  • Maximum Gate-Source Voltage: ±8V
  • Maximum Gate Charge: 27nC @ 4.5V
  • Applications: Power management, battery protection, and load switching
