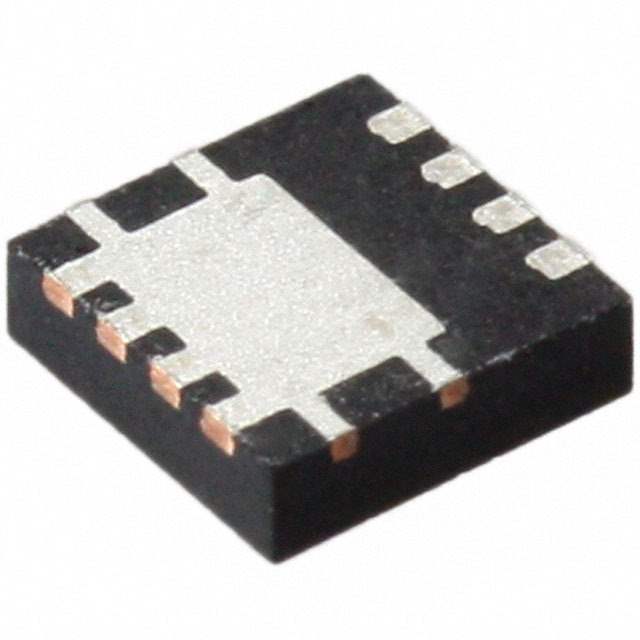

FDMC2514SDC

Name: FDMC2514SDC
Brand: Fairchild/ON Semiconductor
SKU: 129339
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FDMC2514SDC
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 25V 40A POWER33
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	25V
Continuous Drain Current at 25°C	24A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	3V @ 1mA
Max Gate Charge	44nC @ 10V
Max Input Capacitance	2705pF @ 13V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	3W (Ta), 60W (Tc)
Maximum Rds On at Id,Vgs	3.5 mOhm @ 22.5A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	Dual Cool 33
Dimension	8-PowerTDFN
Win Source Part Number	016021-FDMC2514SDC
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	3k pcs
Ultra Librarian 3D Model	Ultra Librarian FDMC2514SDC CAD Model

Alternative Products

Description

The Fairchild/ON Semiconductor 016021-FDMC2514SDC is an N-channel MOSFET designed for use in discrete semiconductor products.

Power Dissipation (Max): 3W (Ta), 60W (Tc)
Drain-Source Breakdown Voltage: 25V
Continuous Drain Current (25°C): 24A (Ta), 40A (Tc)
Gate-Source Threshold Voltage: 3V @ 1mA
Gate Charge (Max): 44nC @ 10V
Rds On (Max): 3.5 mOhm @ 22.5A, 10V
Package: Dual Cool 33
Dimension: 8-PowerTDFN
Temperature Range: -55°C to 150°C (TJ)
Supply and Demand: Balance
Package Quantity: 3k pcs
