Same model may have multiple batches, images only for reference.

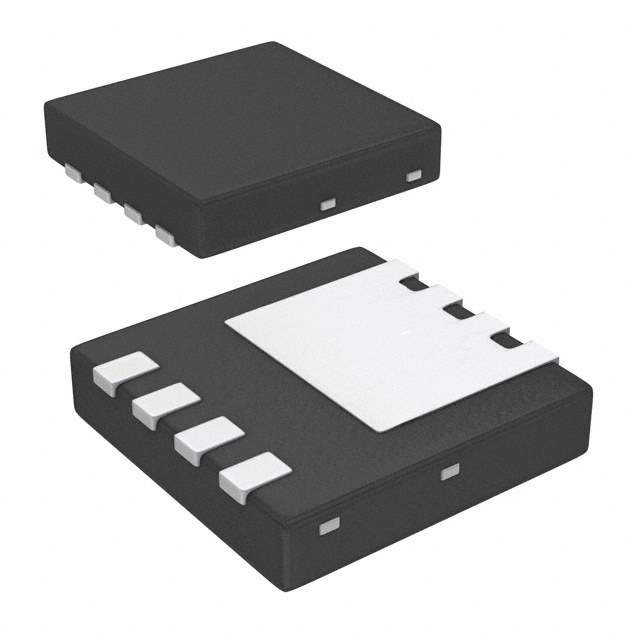

FDMC8321L Real Image
Same model may have multiple batches, images only for reference.

FDMC8321L

Part No FDMC8321L
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 22A 8-PQFN
Datasheet
FDMC8321L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 22A (Ta), 49A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 3V @ 250μA
Max Gate Charge 61nC @ 10V
Max Input Capacitance 3900pF @ 20V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.3W (Ta), 40W (Tc)
Maximum Rds On at Id,Vgs 2.5 mOhm @ 22A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package Power33
Dimension 8-PowerTDFN
Win Source Part Number 1038200-FDMC8321L
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMC8321L CAD Model

Description

Fairchild/ON Semiconductor FDMC8321L 是一款具有 N 沟道极性的 MOSFET 晶体管。该组件在市场上的知名度中等，假冒威胁率为60%。该组件的供需状况是平衡的。它的温度范围为 -55°C 至 150°C (TJ)，采用 8-PowerTDFN 外壳/封装。它在 Id、Vgs 下的最大 Rds On 在 22A、10V 下为 2.5 mOhm，在 25°C 下的连续漏极电流为 22A (Ta)、49A (Tc)。它具有 ±20V 的最大栅极-源极电压和 61nC @ 10V 的最大栅极电荷。它是一种可靠的组件，可用于各种电子设备。
