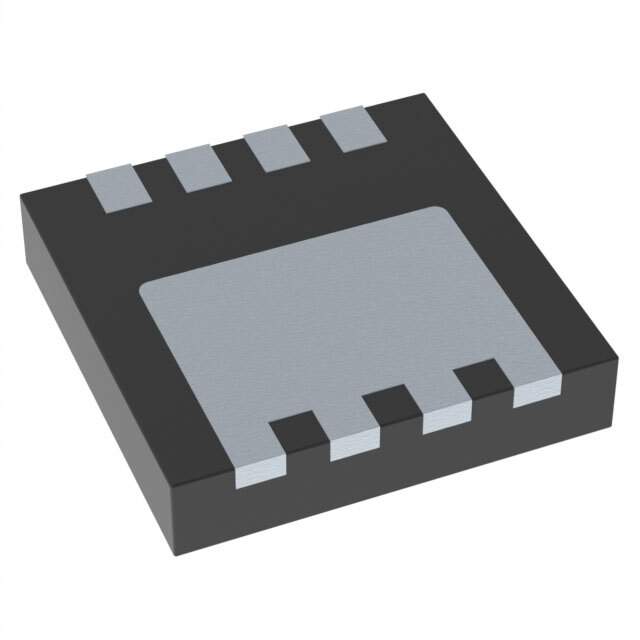

Same model may have multiple batches, images only for reference.

FDMC86184

Name: FDMC86184
Brand: Fairchild/ON Semiconductor
SKU: 788034
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FDMC86184
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	Trans MOSFET N-CH 100V 12A 8-Pin PQFN EP T/R / MOSFET N-CH 100V 57A 8PQFN
Datasheet	FDMC86184 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Series	PowerTrench
Packaging	Reel package
Channel Type Type	N
Technology	MOSFET
Drain Source Voltage	100V
Current - Continuous Drain (Id) @ 25°C	57A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Vgs(th) (Maximum) @ Id	4V @ 110μA
Gate Charge (Qg) (Maximum) @ Vgs	20nC @ 6V
Input Capacitance (Ciss) (Maximum) @ Vds	2090pF @ 50V
Vgs (Maximum)	±20V
Power Dissipation (Maximum)	54W (Tc)
Rds On (Maximum) @ Id, Vgs	8.5 mOhm @ 21A, 10V
Operating Temperature Range	-55°C ~ 150°C (TJ)
Mounting	SMD
Manufacturer Package	8-PQFN (3.3x3.3), Power33
Package	8-PowerWDFN
Win Source Part Number	788034-FDMC86184
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	3k pcs
Family Name	FDMC86184
ECCN	EAR99
Country of Origin	Philippines
Halogen Free	Compliant
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian FDMC86184 CAD Model

Description

The FDMC86184 from Fairchild/ON Semiconductor is a discrete semiconductor product.

Win Source Part Number: 788034-FDMC86184
Technology: MOSFET
Power Dissipation: 54W (Tc)
Rds On (Maximum) @ Id, Vgs: 8.5 mOhm @ 21A, 10V
