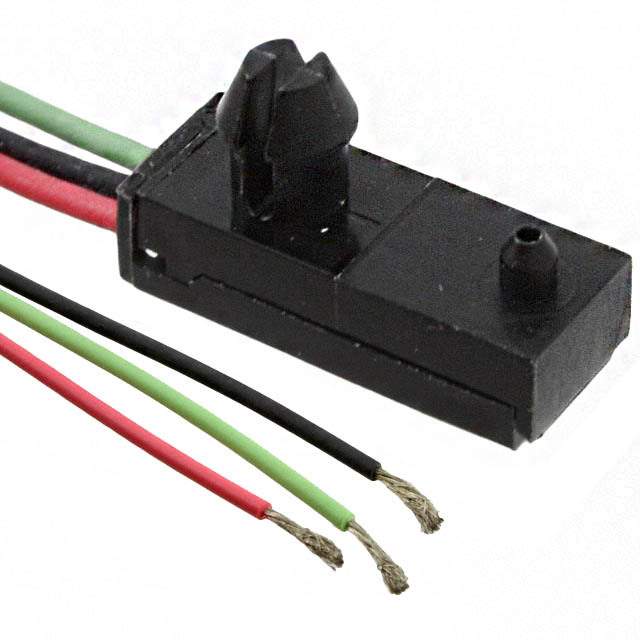

SR13D-A1 Real Image
Same model may have multiple batches, images only for reference.

SR13D-A1

Part No SR13D-A1
Manufacturer Honeywell
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR UNIPOLAR SW DIGIT W LEADS / Magnetic Unipolar Switch Magnet, South Pole Digital Wire Leads Module
Datasheet
SR13D-A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Position, Proximity, Speed (Modules)
Mfr Honeywell Sensing and Productivity Solutions
Series SR13
Package Bulk
Type Unipolar Switch
Output Type Digital
Actuator Material Magnet, South Pole
Termination Style Wire Leads
Voltage - Supply 3.8V ~ 30V
Must Operate 15mT
Must Release 2mT
Temperature Range - Operating -40°C ~ 150°C (TA)
Package / Case Module
Base Product Number SR13D
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.4500
Other Names SR13D-A1-ND,480-3581,SR13DA1
Standard Package 20
Win Source Part Number 1087077-SR13D-A1
Ultra Librarian 3D Model Ultra Librarian SR13D-A1 CAD Model

Description

The SR13D-A1 magnetic sensor by Honeywell Sensing and Productivity Solutions is a unipolar switch type sensor designed to be used in position, proximity, and speed measurement applications.

  • Termination: wire leads termination
  • Package: module package
  • Must Operate: 15mT
  • Must Release: 2mT
  • Voltage Supply: 3.8V to 30V
  • Temperature Range: -40°C to 150°C
  • Output: digital output
  • Standard Package: 20
  • Alternative Parts Cross-Reference: SR15C-A3, 91SS16-3, and EE-SX3239-P2
