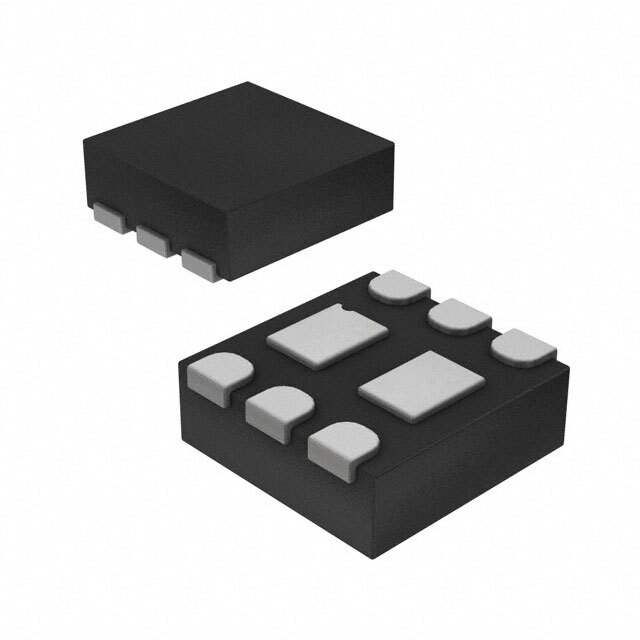

FDME1034CZT Real Image
Same model may have multiple batches, images only for reference.

FDME1034CZT

Part No FDME1034CZT
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N/P-CH 20V 6-MICROFET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
FET Type N and P-Channel
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 3.8A, 2.6A
Maximum Rds On at Id,Vgs 66 mOhm @ 3.4A, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 4.2nC @ 4.5V
Max Input Capacitance 300pF @ 10V
Maximum Power Dissipation 600mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-MicroFET (1.6x1.6)
Win Source Part Number 016047-FDME1034CZT
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FDME1034CZT CAD Model

Description

Fairchild/ON Semiconductor's 016047-FDME1034CZT is an N and P-Channel FET designed for Discrete Semiconductor Products.

  • Channel Type: N and P-Channel
  • Gate Type: Logic Level Gate
  • Packaging: Reel - TR
  • Mounting Technology: SMD (SMT)
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Package Quantity: 5k pcs
  • Maximum Power Dissipation: 600mW
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 3.8A (N-Channel), 2.6A (P-Channel) @ 25°C
