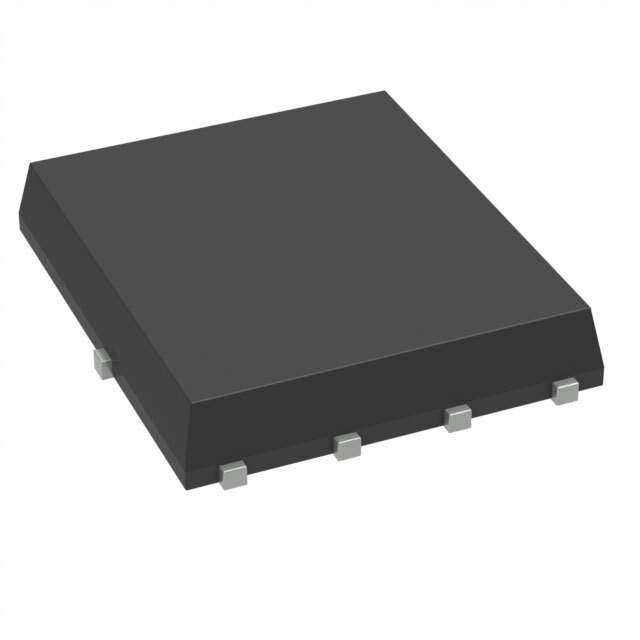

FDMS7650 Real Image
Same model may have multiple batches, images only for reference.

FDMS7650

Part No FDMS7650
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET N-CH Si 30V 36A 8-Pin PQFN EP T/R / MOSFET N-CH 30V POWER56
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 36A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 3V @ 250μA
Max Gate Charge 209nC @ 10V
Max Input Capacitance 14965pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.5W (Ta), 104W (Tc)
Maximum Rds On at Id,Vgs 0.99 mOhm @ 36A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-PQFN (5x6), Power56
Dimension 8-PowerTDFN
Win Source Part Number 016074-FDMS7650
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name FDMS7650
Introduction Date July 28, 2006
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FDMS7650 CAD Model

Description

The Fairchild/ON Semiconductor 016074-FDMS7650 is a MOSFET with N-Channel polarity.

  • Polarity: N-Channel
  • Maximum Power Dissipation: 2.5W (Ta), 104W (Tc)
  • Package: Reel - TR
  • Mounting Technology: SMD (SMT)
  • Drive Voltage (Max Rds On): 4.5V
  • Drive Voltage (Min Rds On): 10V
  • Operating Temperature: -55°C to 150°C (TJ)
  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 36A (Ta), 100A (Tc) at 25°C
  • Gate-Source Threshold Voltage: 3V @ 250μA
  • Maximum Gate Charge: 209nC @ 10V
  • Maximum Input Capacitance: 14965pF @ 15V
  • Maximum Rds On: 0.99 mOhm @ 36A, 10V
