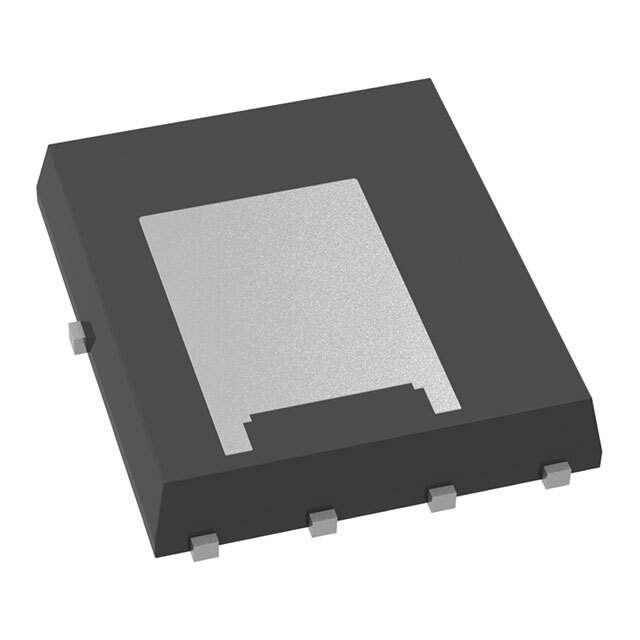

FDMS8320LDC Real Image
Same model may have multiple batches, images only for reference.

FDMS8320LDC

Part No FDMS8320LDC
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description DUAL COOL™ PACKAGE POWERTRENCH® MOSFETs
Datasheet
FDMS8320LDC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Series Dual Cool, PowerTrench
Packaging Reel - TR
Channel Type Type N
Technology MOSFET
Drain Source Voltage 40V
Current - Continuous Drain (Id) @ 25°C 44A (Ta), 130A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs(th) (Maximum) @ Id 3V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 170nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 11635pF @ 20V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 3.2W (Ta), 125W (Tc)
Rds On (Maximum) @ Id, Vgs 1.1 mOhm @ 44A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package Dual Cool56
Package 8-PowerTDFN
Win Source Part Number 1173842-FDMS8320LDC
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name FDMS8320LDC
Introduction Date October 29, 2012
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian FDMS8320LDC CAD Model

Description

The FDMS8320LDC is a Dual Cool, PowerTrench MOSFET manufactured by Fairchild/ON Semiconductor.

  • Current-Continuous Drain (Id): 44A (Ta) and 130A (Tc) @ 25°C
  • Gate Charge (Qg): 170nC @ 10V
  • Input Capacitance (Ciss): 11635pF @ 20V
  • Drain Source Voltage: 40V
  • Vgs(th) (maximum) @ Id: 3V @ 250μA
  • Package: 8-PowerTDFN
  • Mounting Type: SMD
  • Ideal for: Discrete semiconductor products and other electronic applications.
