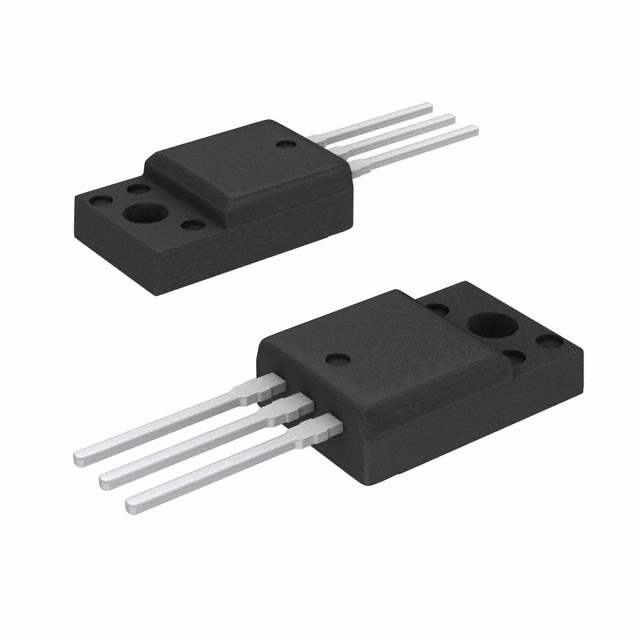

FDPF3860T

Name: FDPF3860T
Brand: Fairchild/ON Semiconductor
SKU: 129705
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FDPF3860T
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 100V 20A TO-220F
Datasheet	FDPF3860T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Tube/Rail
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	100V
Continuous Drain Current at 25°C	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	4.5V @ 250μA
Max Gate Charge	35nC @ 10V
Max Input Capacitance	1800pF @ 25V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	33.8W (Tc)
Maximum Rds On at Id,Vgs	38.2 mOhm @ 5.9A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	Through Hole
Case / Package	TO-220F
Dimension	TO-220-3 Full Pack
Win Source Part Number	016126-FDPF3860T
Family Name	FDPF3860T
Introduction Date	September 14, 2004
ECCN	EAR99
Country of Origin	China, United States of America
Halogen Free	Compliant
Estimated EOL Date	2024
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Application Field	Used in Power Management, Consumer Electronics
Ultra Librarian 3D Model	Ultra Librarian FDPF3860T CAD Model

Alternative Products

Description

The Fairchild/ON Semiconductor FDPF3860T is a MOSFET designed for power management and consumer electronics applications. Supply and demand status is limited.

Case/Package: TO-220F
Drain-Source Breakdown Voltage: 100V
Continuous Drain Current: 20A @ 25°C
Gate-Source Threshold Voltage: 4.5V @ 250μA
