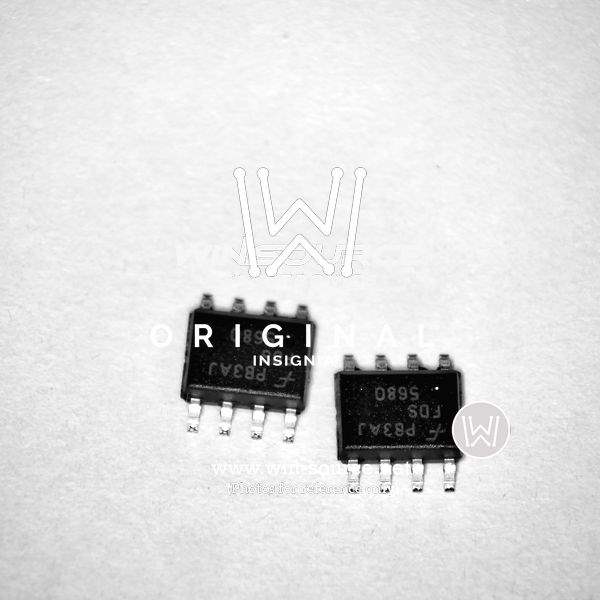

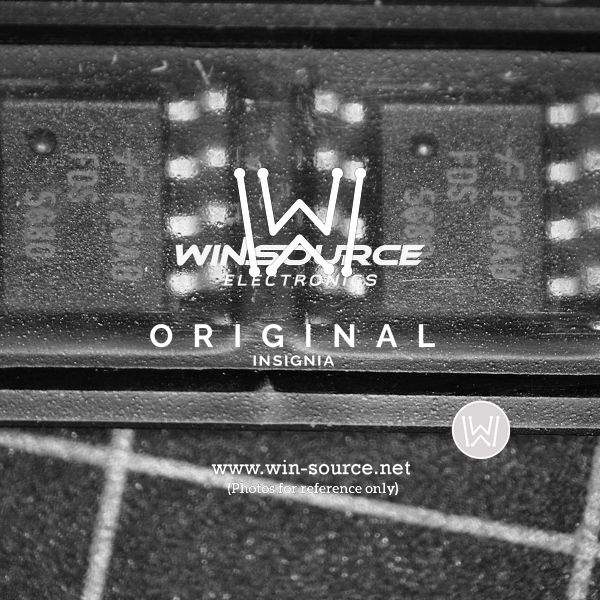

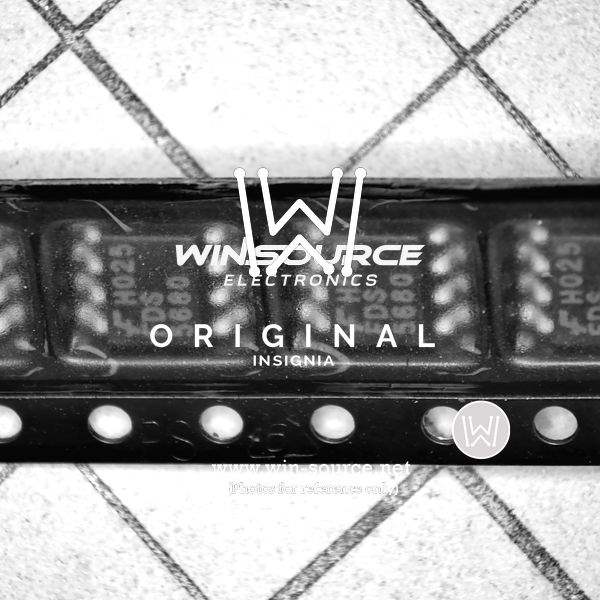

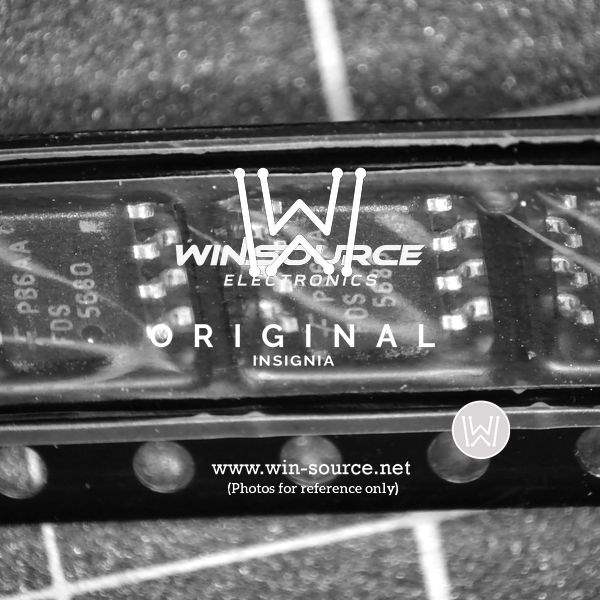

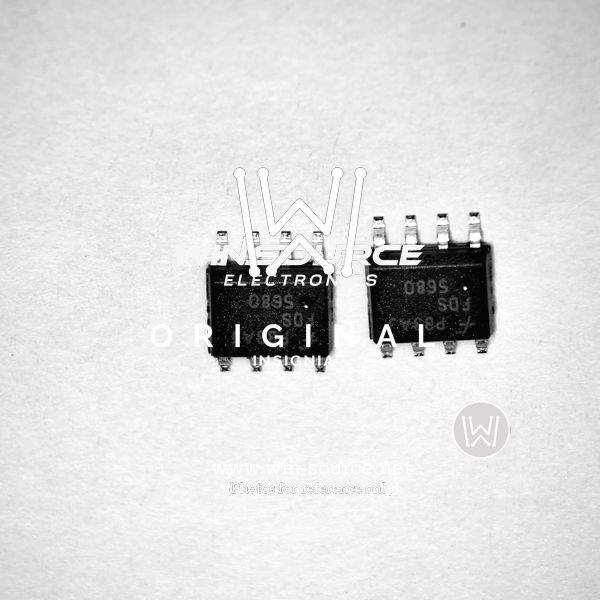

FDS5680

Name: FDS5680
Brand: Fairchild/ON Semiconductor
SKU: 129816
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FDS5680
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	Trans MOSFET N-CH 60V 8A 8-Pin SOIC T/R / MOSFET N-CH 60V 8A 8-SO
Datasheet	FDS5680 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	60V
Continuous Drain Current at 25°C	8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Gate-Source Threshold Voltage	4V @ 250μA
Max Gate Charge	42nC @ 10V
Max Input Capacitance	1850pF @ 15V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	2.5W (Ta)
Maximum Rds On at Id,Vgs	20 mOhm @ 8A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	8-SO
Dimension	8-SOIC (0.154", 3.90mm Width)
Win Source Part Number	016148-FDS5680
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Power Management, Industrial
Quantity per package	2,500
Family Name	FDS5680
Introduction Date	August 26, 1999
ECCN	EAR99
Country of Origin	China, Israel
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian FDS5680 CAD Model

Alternative Products

Description

This N-channel MOSFET is manufactured by Fairchild/ON Semiconductor.

Package: 8-SO
Drain-Source Breakdown Voltage: 60V
Maximum Rds On: 20 mOhm @ 8A, 10V
Applications: Power management and industrial applications
Supply and Demand: Balanced
