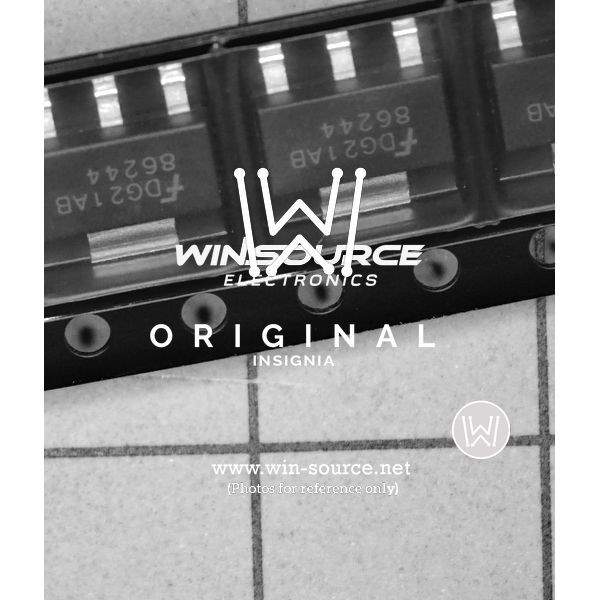

FDT86244 Real Image FDT86244 real image15445
Same model may have multiple batches, images only for reference.
FDT86244 Real Image FDT86244 real image15445
FDT86244 Real Image FDT86244 real image15445
Same model may have multiple batches, images only for reference.

FDT86244

Part No FDT86244
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 150V 2.8A SOT-223
Datasheet
FDT86244 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 150V
Continuous Drain Current at 25°C 2.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 7nC @ 10V
Max Input Capacitance 395pF @ 75V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.2W (Ta)
Maximum Rds On at Id,Vgs 128 mOhm @ 2.8A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-223-4
Dimension TO-261-4, TO-261AA
Win Source Part Number 1038466-FDT86244
Popularity Medium
Supply and Demand Status Limited
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian FDT86244 CAD Model

Description

The Fairchild/ON Semiconductor FDT86244 is an N-channel MOSFET from Fairchild/ON Semiconductor, designed for use in power switching applications.

  • Power Dissipation: 2.2W
  • Drain-Source Breakdown Voltage: 150V
  • Package: SOT-223-4
  • Application: Power Switching
